SKU: RAXPZ415-NADELLA

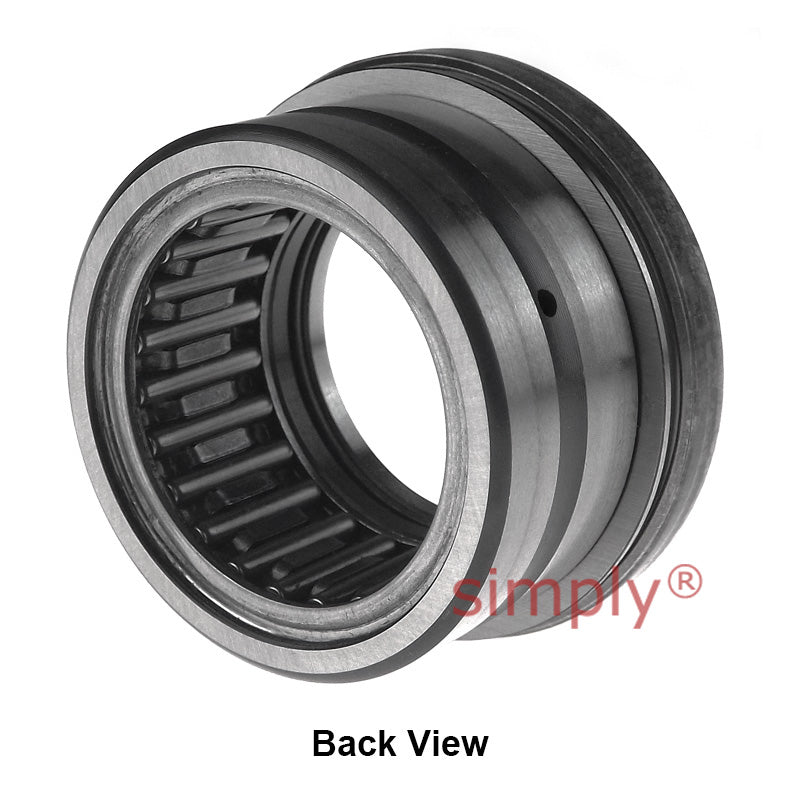

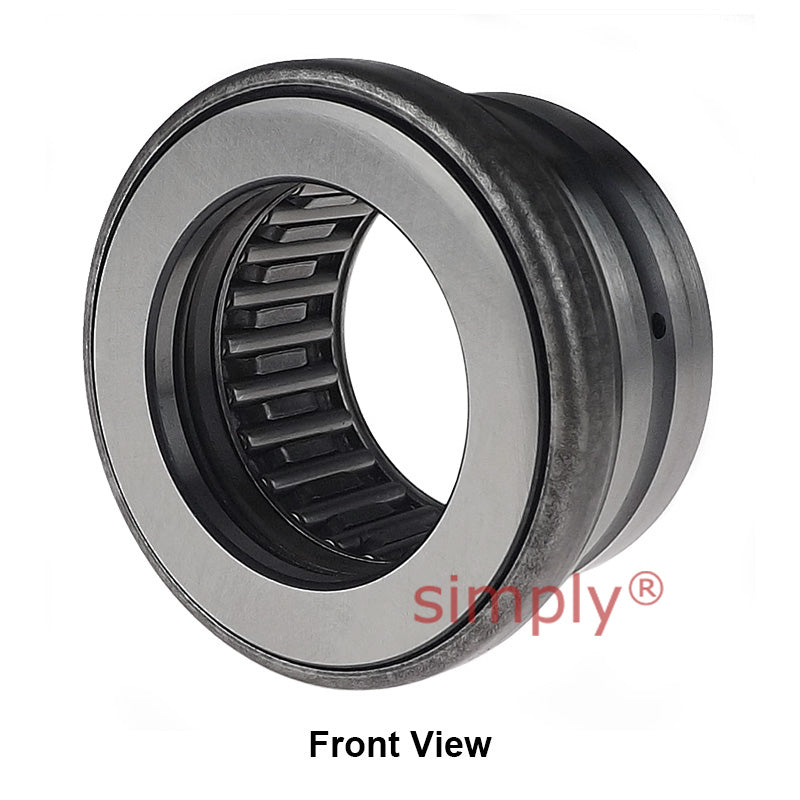

Nadella RAXPZ415 Combined Bearing with Incorporated Thrust Plate 15x24x21mm Allow 2-3 Days
Nadella RAXPZ415 Combined Bearing with Incorporated Thrust Plate 15x24x21mm Allow 2-3 Days
Regular price
CHF 373.00
ex VAT
Regular price
Sale price
CHF 373.00
ex VAT
In stock
Price Break
5+
CHF 369.27
10+
CHF 354.35
20+
CHF 346.89
50+
CHF 335.70
100+
CHF 328.24
500+
CHF 309.59
1000+
CHF 261.10
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 21mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 21mm |
| da | 15mm |
| Da | 28.4mm |
| C1 | 7mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 7.6 kN |
| Axial static load | 20.8 kN |
| Speed rating | 11500 rpm |
| Weight | 0.04 kg |
