SKU: RAXPZ425-MB

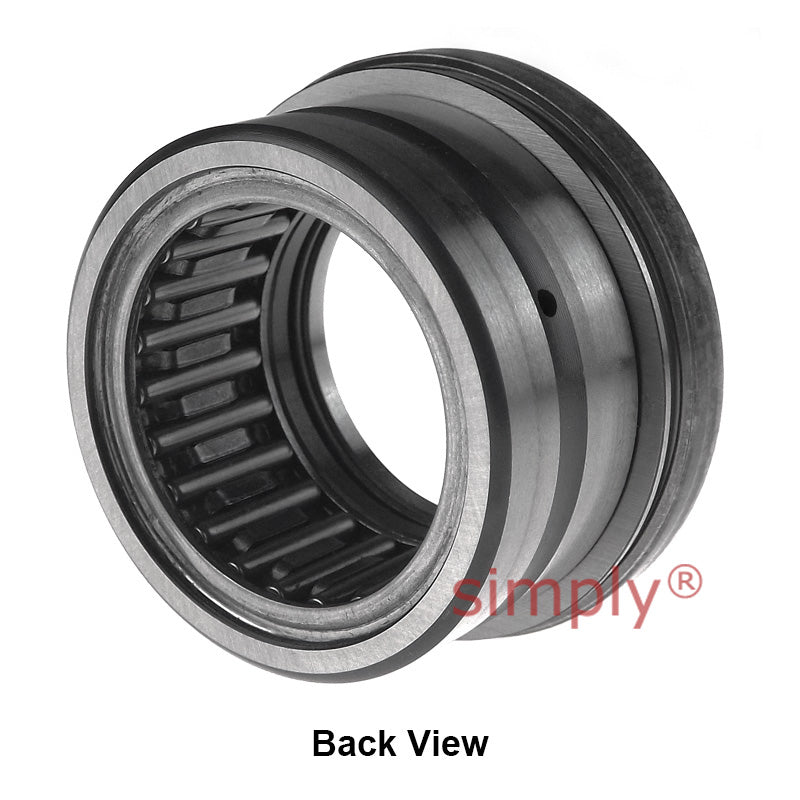

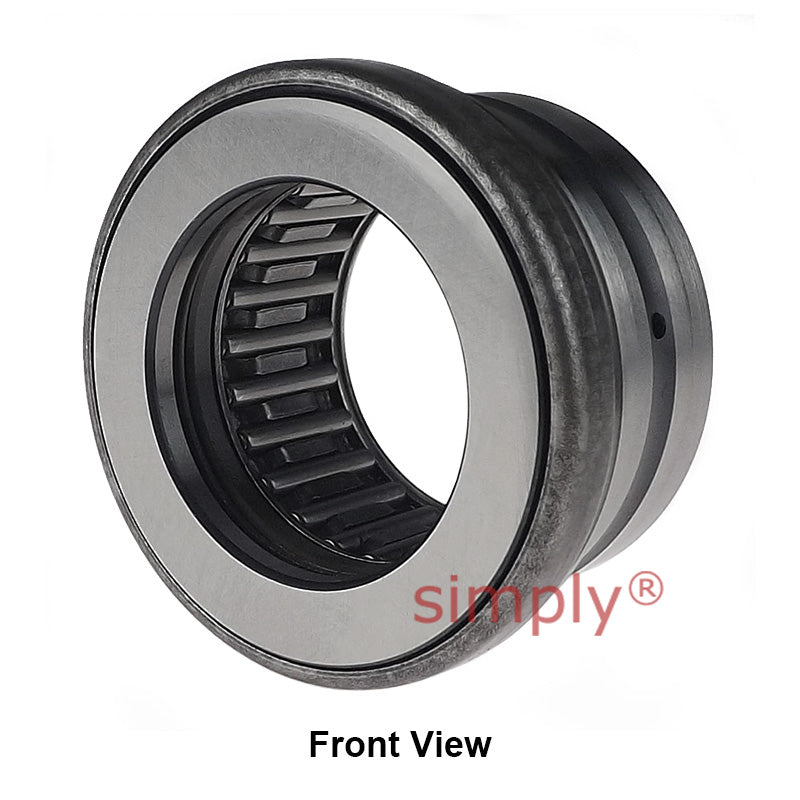

Major Brand RAXPZ 425 Combined Bearing with Incorporated Thrust Plate 25x37x27mm
Major Brand RAXPZ 425 Combined Bearing with Incorporated Thrust Plate 25x37x27mm
Regular price
CHF 188.00
ex VAT
Regular price
Sale price
CHF 188.00
ex VAT
In stock
Price Break
10+
CHF 149.81
19+
CHF 141.40
29+
CHF 139.71
39+
CHF 138.03
49+
CHF 136.35
74+
CHF 134.66
99+
CHF 126.25
199+
CHF 124.56
249+
CHF 122.88
499+
CHF 121.20
999+
CHF 117.83
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 27mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| C | 27mm |
| da | 25mm |
| Da | 43mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 15.1 kN |
| Radial static load | 26.2 kN |
| Axial dynamic load | 13.3 kN |
| Axial static load | 49 kN |
| Speed rating | 7500 rpm |
| Weight | 0.118 kg |
