SKU: RAXPZ430-MB

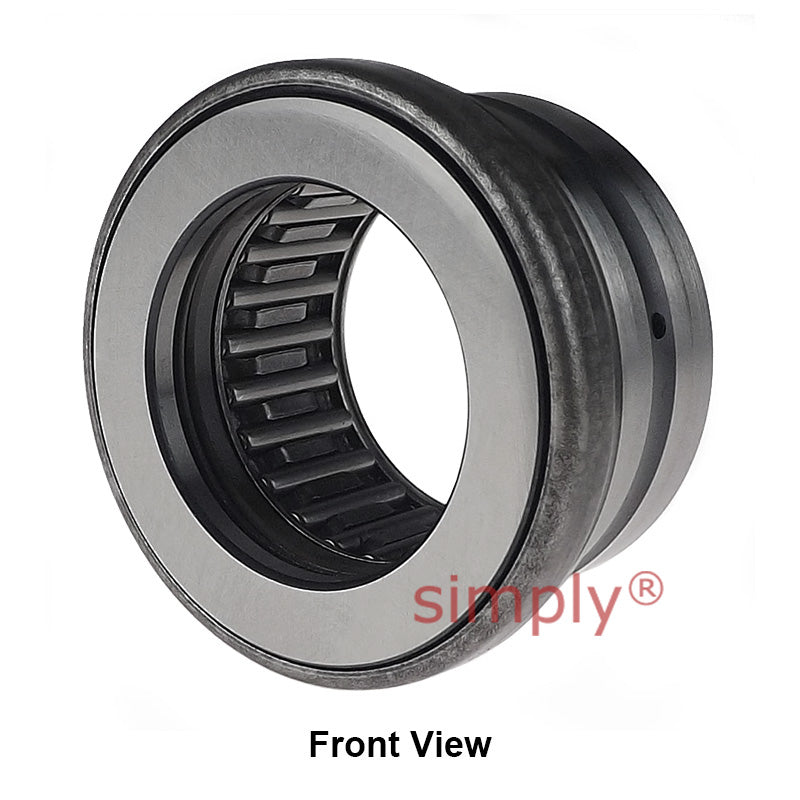

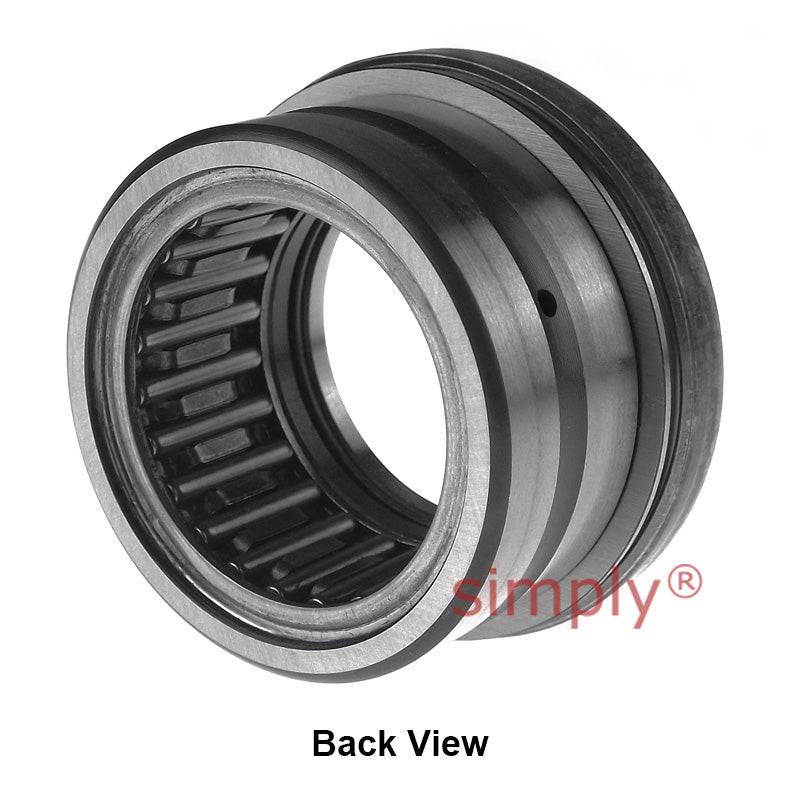

Major Brand RAXPZ 430 Combined Bearing with Incorporated Thrust Plate 30x42x27mm
Major Brand RAXPZ 430 Combined Bearing with Incorporated Thrust Plate 30x42x27mm
Regular price
CHF 319.00
ex VAT
Regular price
Sale price
CHF 319.00
ex VAT
In stock
Price Break
10+
CHF 254.06
19+
CHF 239.79
29+
CHF 236.93
39+
CHF 234.08
49+
CHF 231.22
74+
CHF 228.37
99+
CHF 214.10
199+
CHF 211.24
249+
CHF 208.39
499+
CHF 205.53
999+
CHF 199.82
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 27mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 27mm |
| da | 30mm |
| Da | 48mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 14.5 kN |
| Axial static load | 57 kN |
| Speed rating | 6.5 rpm |
| Weight | 0.133 kg |
