SKU: RAXPZ440-MB

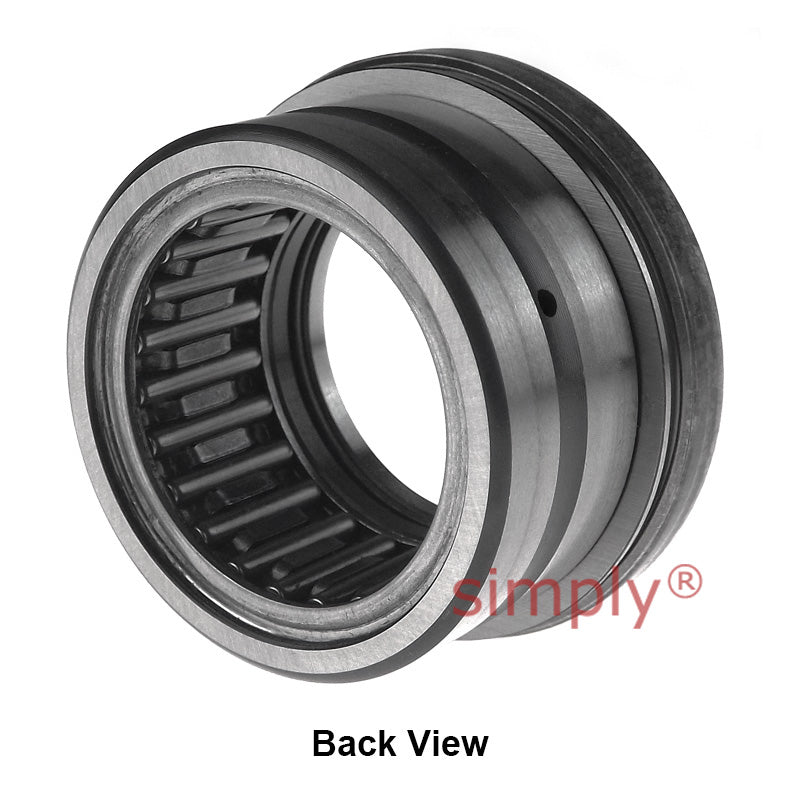

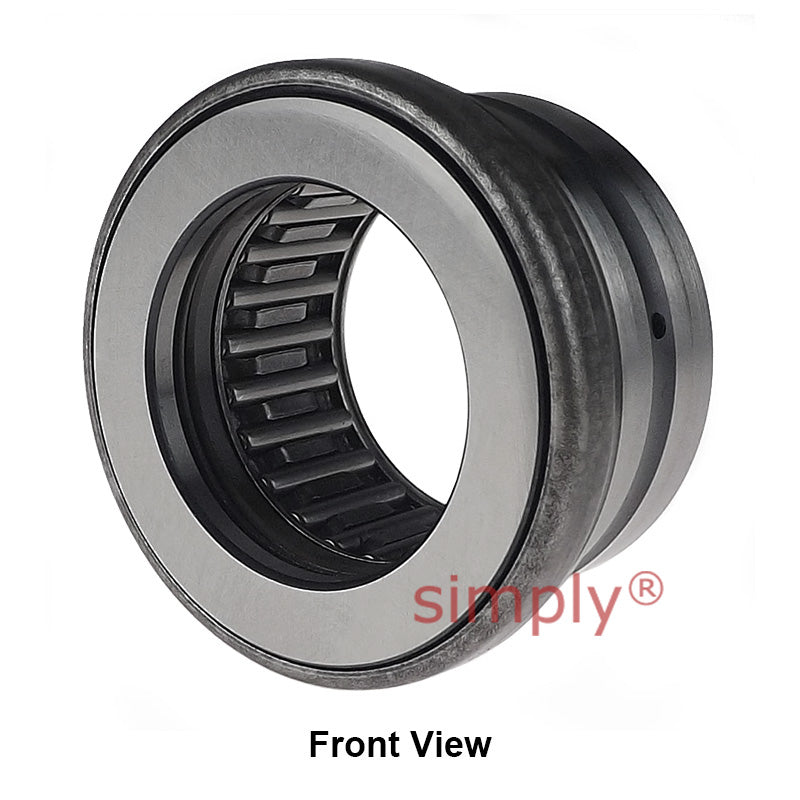

Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
Major Brand RAXPZ 440 Combined Bearing with Incorporated Thrust Plate 40x52x27mm Allow 2-3 Days
Regular price
CHF 304.00
ex VAT
Regular price
Sale price
CHF 304.00
ex VAT
In stock
Price Break
10+
CHF 241.71
19+
CHF 228.13
29+
CHF 225.42
39+
CHF 222.70
49+
CHF 219.98
74+
CHF 217.27
99+
CHF 203.69
199+
CHF 200.97
249+
CHF 198.26
499+
CHF 195.54
999+
CHF 190.11
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 27mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 27mm |
| da | 40mm |
| Da | 61mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 23.8 kN |
| Radial static load | 47 kN |
| Axial dynamic load | 20.4 kN |
| Axial static load | 96 kN |
| Speed rating | 5 rpm |
| Weight | 0.184 kg |
