SKU: RAXPZ445-MB
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Regular price
CHF 353.00
ex VAT
Regular price
Sale price
CHF 353.00
ex VAT
In stock
Price Break
10+
CHF 280.86
19+
CHF 265.08
29+
CHF 261.92
39+
CHF 258.77
49+
CHF 255.61
74+
CHF 252.46
99+
CHF 236.68
199+
CHF 233.52
249+
CHF 230.37
499+
CHF 227.21
999+
CHF 220.90
Share this product
Description
Description

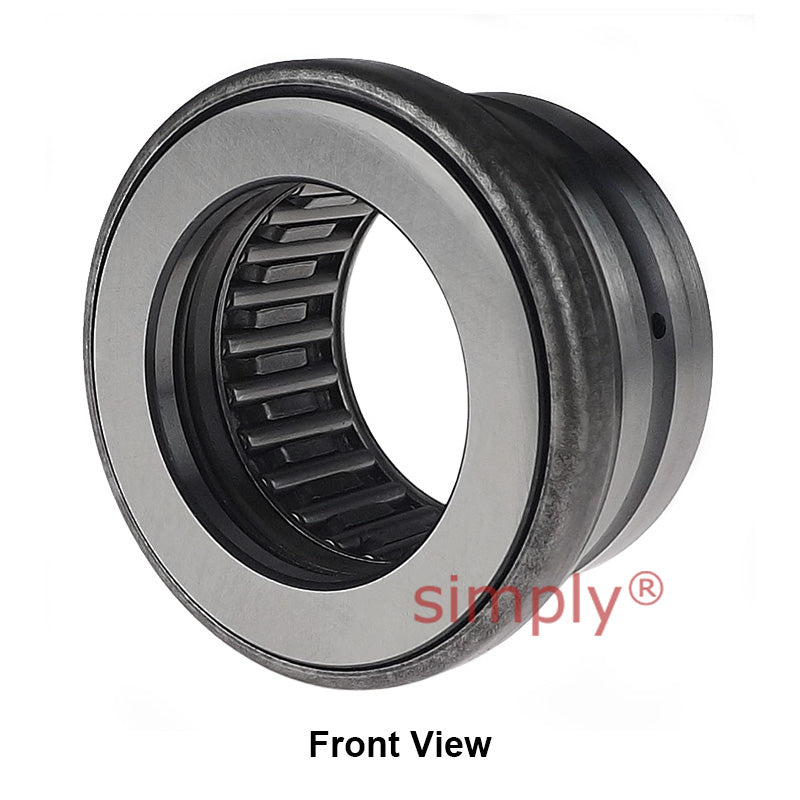

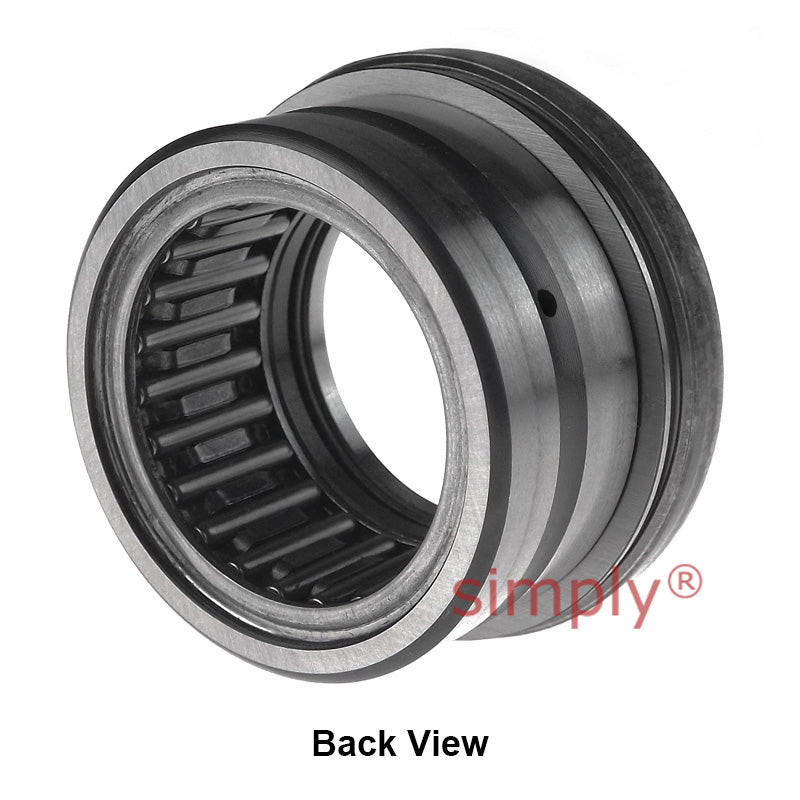

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 27mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 27mm |
| da | 45mm |
| Da | 66mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 24.9 kN |
| Radial static load | 51.8 kN |
| Axial dynamic load | 21.8 kN |
| Axial static load | 109 kN |
| Speed rating | 4.5 rpm |
| Weight | 0.216 kg |
