SKU: RAXZ517-MB

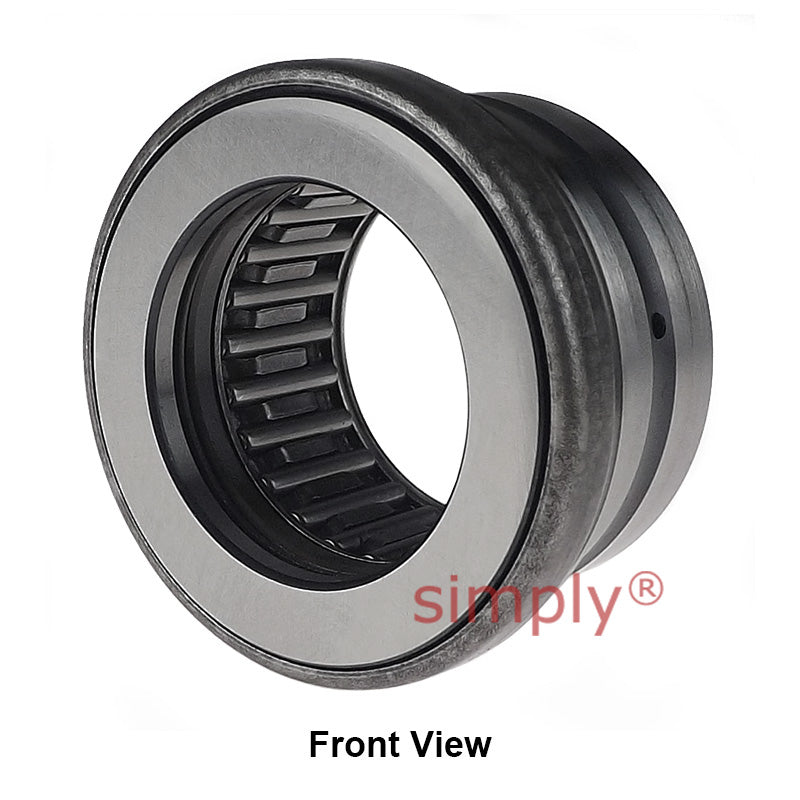

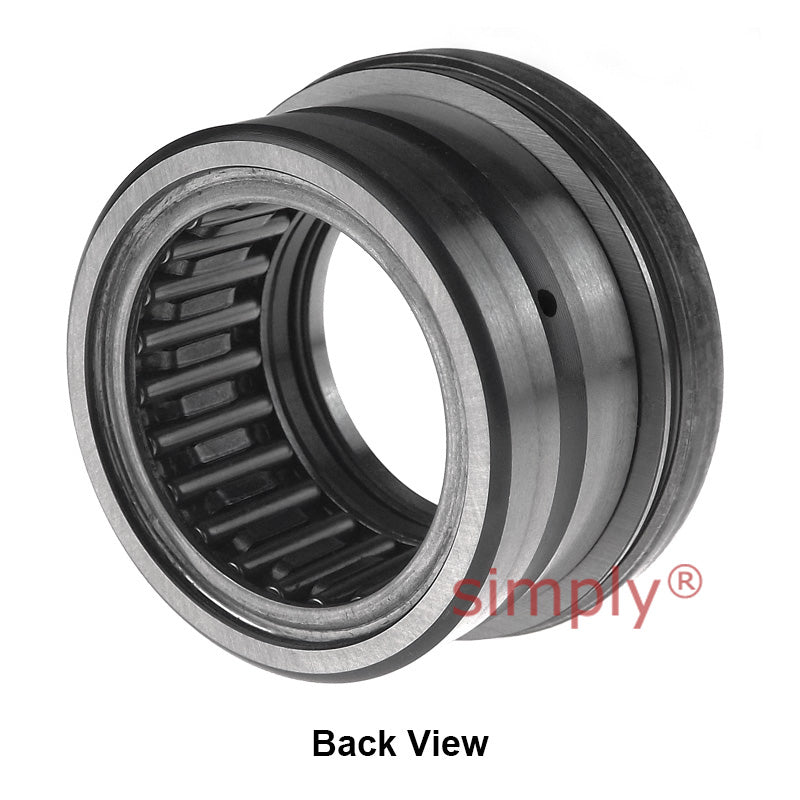

Major Brand RAXZ 517 Combined Bearing with Incorporated Thrust Plate 17x26x24mm Allow 2-3 Days
Major Brand RAXZ 517 Combined Bearing with Incorporated Thrust Plate 17x26x24mm Allow 2-3 Days
Regular price
CHF 359.19
ex VAT
Regular price
Sale price
CHF 359.19
ex VAT
In stock
Price Break
10+
CHF 319.68
19+
CHF 301.72
29+
CHF 298.13
39+
CHF 294.54
49+
CHF 290.94
74+
CHF 287.35
99+
CHF 269.39
199+
CHF 265.80
249+
CHF 262.21
499+
CHF 258.62
999+
CHF 251.43
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 24mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 24mm |
| da | 17mm |
| Da | 30.4mm |
| C1 | 8mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 15 kN |
| Axial static load | 39 kN |
| Speed rating | 10500 rpm |
| Weight | 0.053 kg |
