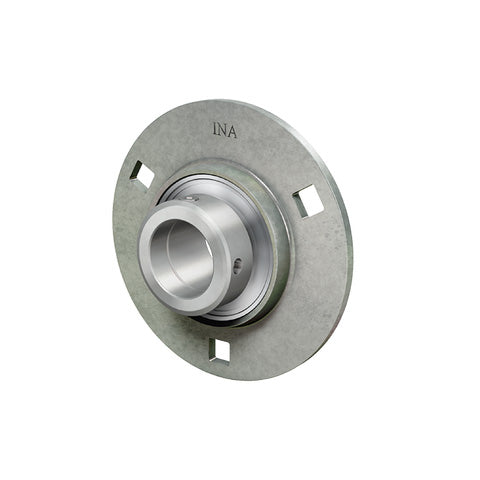

INA RAY25XL Three Bolt Sheet Steel Round Housing with Grub Screw Insert 25mm Bore
INA RAY25XL Three Bolt Sheet Steel Round Housing with Grub Screw Insert 25mm Bore
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
4+
CHF 18.96
9+
CHF 17.89
19+
CHF 17.68
29+
CHF 17.47
39+
CHF 17.25
49+
CHF 17.04
59+
CHF 15.98
69+
CHF 15.76
79+
CHF 15.55
89+
CHF 15.34
99+
CHF 14.91
Description
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- RAY
- Pitch Circle Diameter:
- 76mm

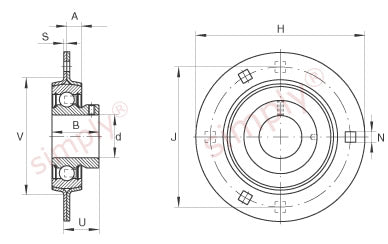

Technical
Technical
| d | 25mm |
|---|---|
| H | 95mm |
| B | 27mm |
| A | 8.7mm |
| J | 76mm |
| N | 8.7mm |
| Number of screw holes | 3 |
| S | 2mm |
| U | 21.5mm |
| V | 60 |
| Mass | 0.34 kg |
| Load carrying capacity of housing Cor G | 3650 N |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | FLAN52-MSB (2 X) |
| Designation of bearing | AY25-XL-NPP-B |
