SKU: RAY30-XL-INA

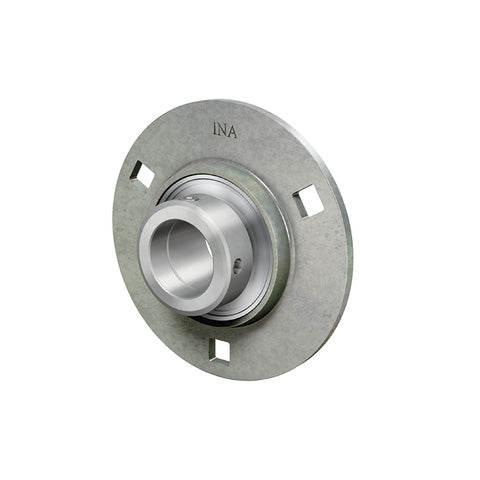

INA RAY30XL Three Bolt Sheet Steel Round Housing with Grub Screw Insert 30mm Bore
INA RAY30XL Three Bolt Sheet Steel Round Housing with Grub Screw Insert 30mm Bore
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
4+
CHF 22.71
9+
CHF 21.44
19+
CHF 21.18
29+
CHF 20.93
39+
CHF 20.67
49+
CHF 20.42
59+
CHF 19.14
69+
CHF 18.88
79+
CHF 18.63
89+
CHF 18.37
99+
CHF 17.86
Description
Description
|
INA Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- RAY
- Pitch Circle Diameter:
- 90.5mm
Technical
Technical
| d | 30mm |
|---|---|
| H | 112.7mm |
| B | 30mm |
| A | 8.7mm |
| J | 90.5mm |
| N | 10.5mm |
| Number of screw holes | 3 |
| S | 2.5mm |
| U | 23.5mm |
| V | 71 |
| Mass | 0.45 kg |
| Load carrying capacity of housing Cor G | 5000 N |
| Basic dynamic load rating Cr | 20700 N |
| Basic static load rating Cor | 11300 N |
| Designation of housing | FLAN62-MSB (2 X) |
| Designation of bearing | AY30-XL-NPP-B |
