SKU: RCJ25-XL-N-FA125-INA

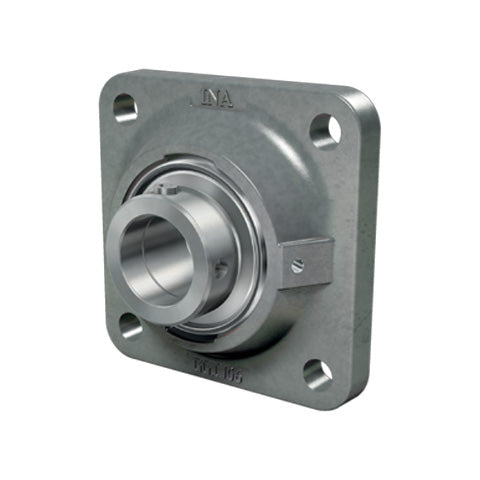

INA RCJ25XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
INA RCJ25XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
Regular price
CHF 57.70
ex VAT
Regular price
Sale price
CHF 57.70
ex VAT
In stock
Price Break
10+
CHF 51.35
19+
CHF 48.47
29+
CHF 47.89
39+
CHF 47.31
49+
CHF 46.74
74+
CHF 46.16
99+
CHF 43.28
199+
CHF 42.70
249+
CHF 42.12
499+
CHF 41.54
999+
CHF 40.39
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- RCJ
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 95mm |
| U | 46mm |
| A | 29mm |
| A1 | 11mm |
| A2 | 19mm |
| B1 | 44.5mm |
| d3 max | 37.5mm |
| J | 70mm |
| N | 11.5mm |
| Q | M6 |
| V | 74mm |
| Mass | 0.82 kg |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | CJ05 |
| Designation of bearing | GE25-XL-KRR-B-FA125Bearing end cap, closed design (to be ordered separately) |
| KASK05 | N/A |
