SKU: RCJ75-XL-INA

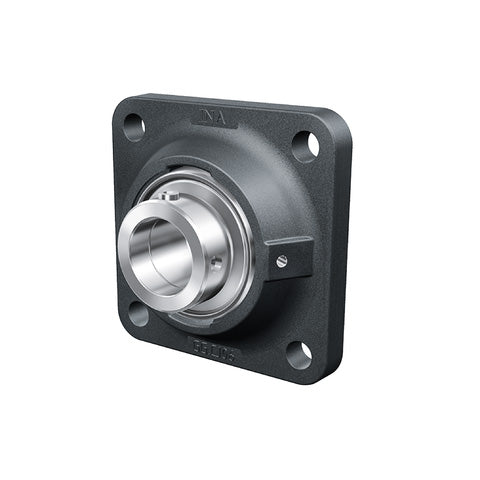

INA RCJ75XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 75mm Bore
INA RCJ75XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 75mm Bore
Regular price
CHF 336.63
ex VAT
Regular price
Sale price
CHF 336.63
ex VAT
In stock
Price Break
10+
CHF 299.60
19+
CHF 282.77
29+
CHF 279.40
39+
CHF 276.04
49+
CHF 272.67
74+
CHF 269.30
99+
CHF 252.47
199+
CHF 249.11
249+
CHF 245.74
499+
CHF 242.37
999+
CHF 235.64
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 75mm
- Style:
- RCJ
- Bolt Hole Centres:
- 153mm
Technical
Technical

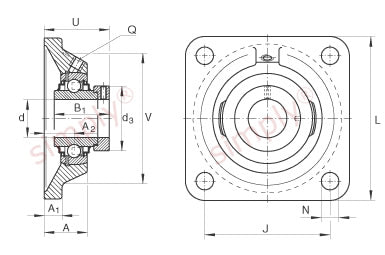

| d | 75mm |
|---|---|
| L | 197mm |
| U | 86.9mm |
| A | 55.8mm |
| A1 | 20mm |
| A2 | 41.3mm |
| B1 | 67mm |
| d3 max | 100mm |
| J | 153mm |
| N | 23mm |
| Q | M6 |
| V | 170mm |
| Mass | 6.5 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44500 N |
| Designation of housing | CJ15 |
| Designation of bearing | GE75-XL-KRR-B |
