SKU: RCJL35-XL-N-INA

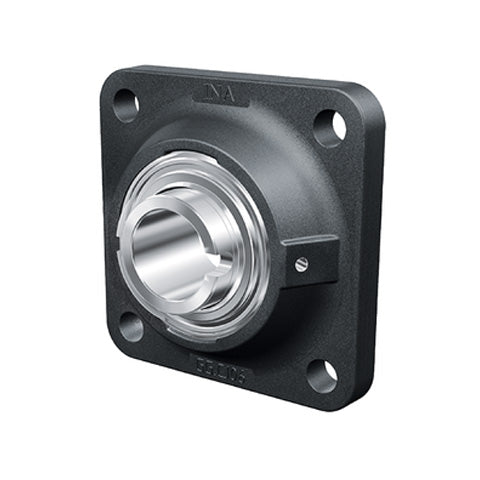

INA RCJL35XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 35mm Bore
INA RCJL35XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 35mm Bore
Regular price
CHF 76.06
ex VAT
Regular price
Sale price
CHF 76.06
ex VAT
In stock
Price Break
10+
CHF 67.69
19+
CHF 63.89
29+
CHF 63.13
39+
CHF 62.37
49+
CHF 61.61
74+
CHF 60.85
99+
CHF 57.05
199+
CHF 56.28
249+
CHF 55.52
499+
CHF 54.76
999+
CHF 53.24
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with a drive slot. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, drive slot insert, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- RCJL
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| L | 118mm |
| U | 43mm |
| A | 30.5mm |
| A1 | 12.5mm |
| A2 | 21mm |
| B | 37.7mm |
| J | 92mm |
| N | 14mm |
| Q | M6 |
| V | 100mm |
| Mass | 1.41 kg |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 15300 N |
| Designation of housing | CJ07 |
| Designation of bearing | GLE35-XL-KRR-BBearing end cap, closed design (to be ordered separately) |
| KASK07 | N/A |
