SKU: RCJL50-XL-N-INA

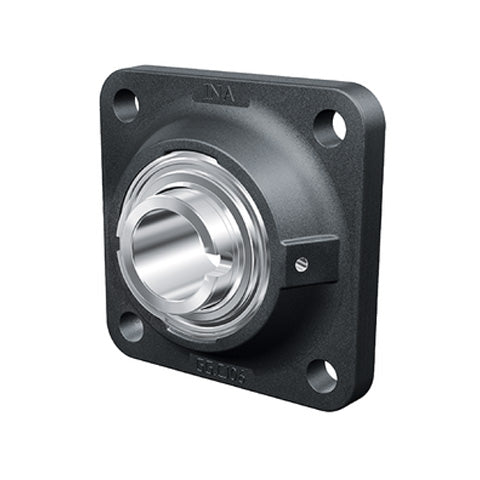

INA RCJL50XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 50mm Bore
INA RCJL50XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 50mm Bore
Regular price
CHF 117.43
ex VAT
Regular price
Sale price
CHF 117.43
ex VAT
In stock
Price Break
10+
CHF 104.51
19+
CHF 98.64
29+
CHF 97.47
39+
CHF 96.29
49+
CHF 95.12
74+
CHF 93.94
99+
CHF 88.07
199+
CHF 86.90
249+
CHF 85.72
499+
CHF 84.55
999+
CHF 82.20
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with a drive slot. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, drive slot insert, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Style:
- RCJL
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 50mm |
|---|---|
| L | 143mm |
| U | 58.2mm |
| A | 39mm |
| A1 | 13mm |
| A2 | 28mm |
| B | 49.2mm |
| J | 111mm |
| N | 18mm |
| Q | M6 |
| V | 125mm |
| Mass | 2.29 kg |
| Basic dynamic load rating Cr | 37500 N |
| Basic static load rating Cor | 23200 N |
| Designation of housing | CJ10 |
| Designation of bearing | GLE50-XL-KRR-BBearing end cap, closed design (to be ordered separately) |
| KASK10 | N/A |
