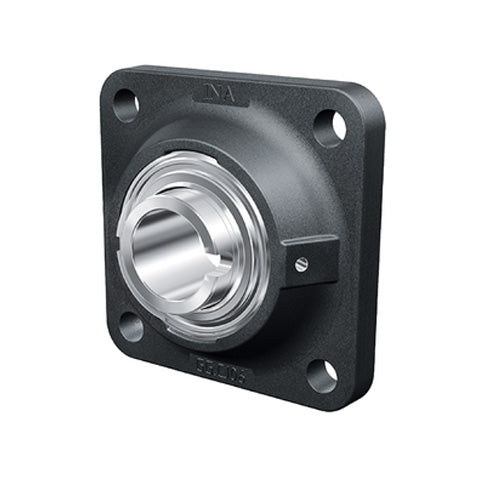

INA RCJL60XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 60mm Bore
INA RCJL60XLN Four Bolt Cast Iron Square Housing with Drive Slot Insert 60mm Bore
Regular price
CHF 204.00
ex VAT
Regular price
Sale price
CHF 204.00
ex VAT
In stock
Price Break
4+
CHF 162.25
9+
CHF 153.13
19+
CHF 151.31
29+
CHF 149.49
39+
CHF 147.66
49+
CHF 145.84
59+
CHF 136.73
69+
CHF 134.90
79+
CHF 133.08
89+
CHF 131.26
99+
CHF 127.61
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with a drive slot. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, drive slot insert, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Style:
- RCJL
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| L | 175mm |
| U | 71.3mm |
| A | 46mm |
| A1 | 16mm |
| A2 | 34mm |
| B | 61.9mm |
| J | 143mm |
| N | 18mm |
| Q | M6 |
| V | 150mm |
| Mass | 4.22 kg |
| Basic dynamic load rating Cr | 56000 N |
| Basic static load rating Cor | 36000 N |
| Designation of housing | CJ12 |
| Designation of bearing | GLE60-XL-KRR-BBearing end cap, closed design (to be ordered separately) |
| KASK12 | N/A |
