SKU: RCJT75-XL-INA
INA RCJT75XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 75mm Bore
INA RCJT75XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 75mm Bore
Regular price
CHF 336.00
ex VAT
Regular price
Sale price
CHF 336.00
ex VAT
In stock
Price Break
4+
CHF 267.09
9+
CHF 252.08
19+
CHF 249.08
29+
CHF 246.08
39+
CHF 243.08
49+
CHF 240.08
59+
CHF 225.08
69+
CHF 222.07
79+
CHF 219.07
89+
CHF 216.07
99+
CHF 210.07
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 75mm
- Style:
- RCJT
- Bolt Hole Centres:
- 216mm

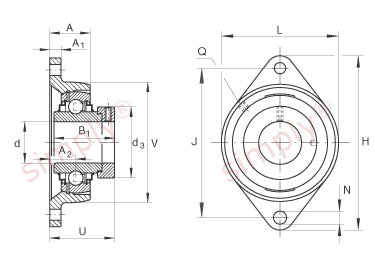

Technical
Technical
| d | 75mm |
|---|---|
| H | 258mm |
| U | 83.6mm |
| A | 57mm |
| A1 | 18mm |
| A2 | 38mm |
| B1 | 67mm |
| d3 max | 100mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| Q | M6mm |
| V | 160mm |
| Mass | 6 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44500 N |
| Designation of housing | CJT15 |
| Designation of bearing | GE75-XL-KRR-B |
