SKU: RCJY75-XL-INA
INA RCJY75XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 75mm Bore
INA RCJY75XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 75mm Bore
Regular price
CHF 271.00
ex VAT
Regular price
Sale price
CHF 271.00
ex VAT
In stock
Price Break
4+
CHF 215.86
9+
CHF 203.73
19+
CHF 201.31
29+
CHF 198.88
39+
CHF 196.46
49+
CHF 194.03
59+
CHF 181.91
69+
CHF 179.48
79+
CHF 177.05
89+
CHF 174.63
99+
CHF 169.78
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 75mm
- Style:
- RCJY
- Bolt Hole Centres:
- 153mm
Technical
Technical

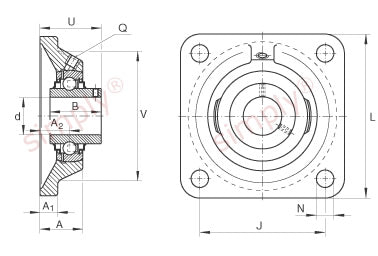

| d | 75mm |
|---|---|
| L | 197mm |
| U | 85.8mm |
| A | 55.8mm |
| A1 | 20mm |
| A2 | 41.3mm |
| B | 77.8mm |
| J | 153mm |
| N | 23mm |
| Q | M6 |
| V | 170mm |
| Mass | 6.04 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44500 N |
| Designation of housing | CJ15 |
| Designation of bearing | GYE75-XL-KRR-B |
