SKU: RCK50-40x45

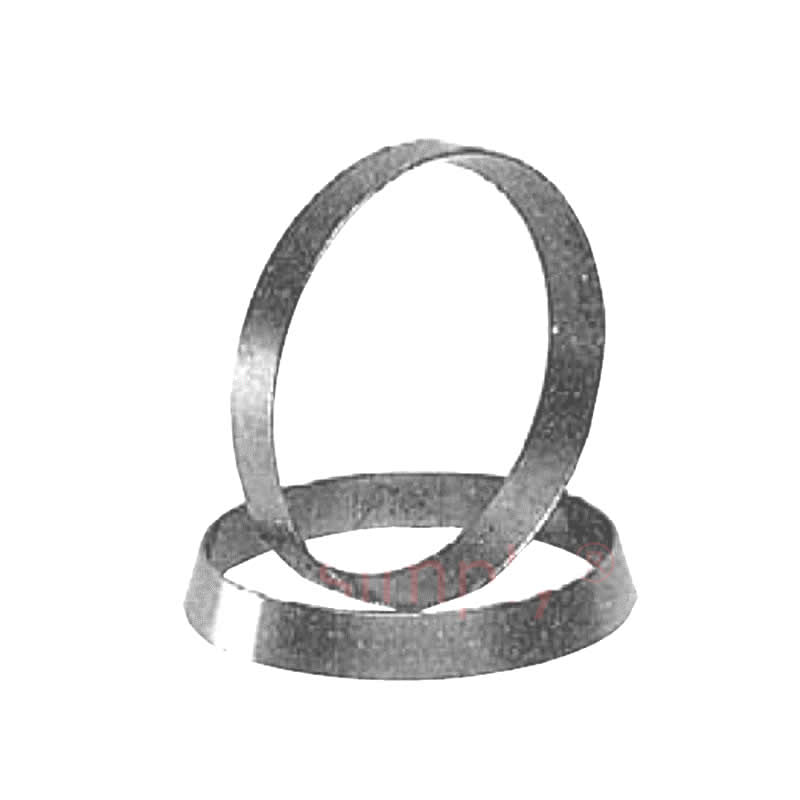

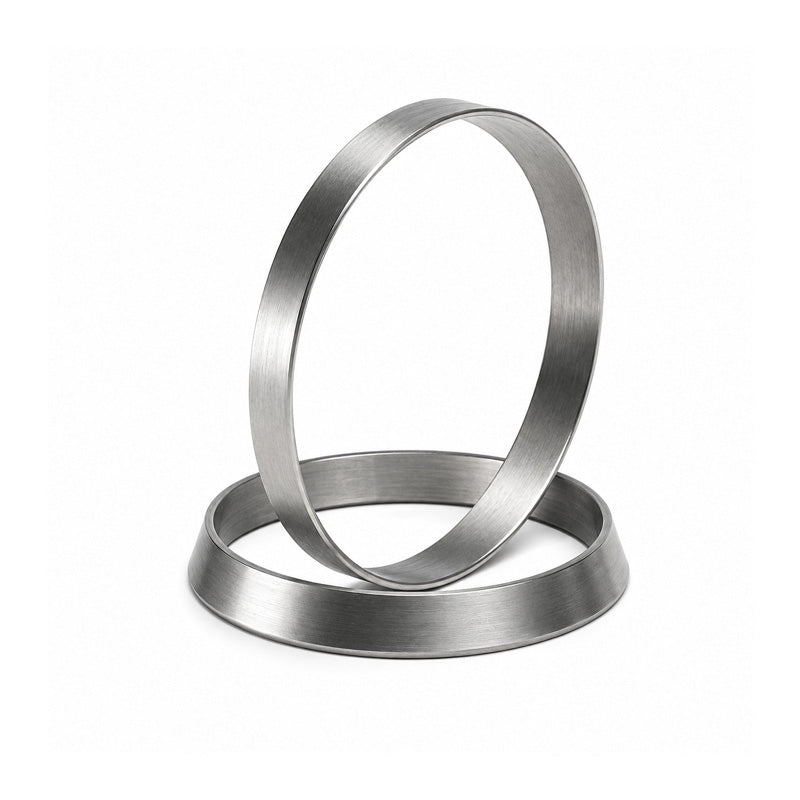

RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
In stock
Price Break
10+
CHF 3.76
20+
CHF 3.72
30+
CHF 3.67
50+
CHF 3.63
75+
CHF 3.58
100+
CHF 3.36
200+
CHF 3.32
250+
CHF 3.27
500+
CHF 3.23
1000+
CHF 3.14
Description
Description
- Brand / Quality:
- Cross & Morse - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 45mm
- Width:
- 8mm
Technical
Technical

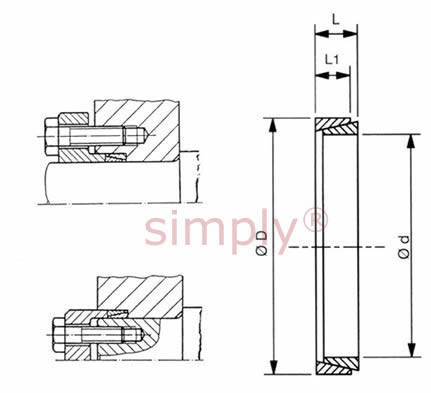

| d | 40mm |
|---|---|
| D | 45mm |
| L | 8mm |
| L<sub>1</sub> | 6.6mm |
| Torque Cap. M Nm | 231 |
| Axial Force F kN | 0.8 |
| Shaft Ps N/mm<sup>2</sup> | 115 |
| Hub Ph N/mm<sup>2</sup> | 105 |
| Axial Force to Clamp kN | 66 |
| Kg | 23 |
| Min. Hub Dia. Assy. A | 63.3 |
| Min. Hub Dia. Assy. B | 58.9 |
| Min. Hub Dia. Assy. C | 55 |
