SKU: RCSMB17/65-FA106-INA

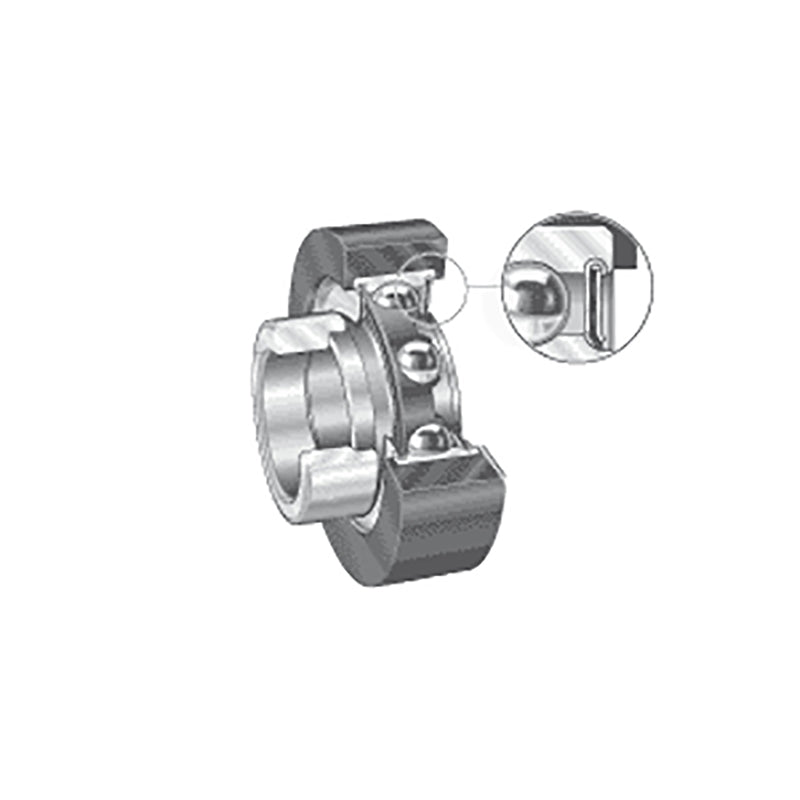

INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm
INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm
Regular price
CHF 32.40
ex VAT
Regular price
Sale price
CHF 32.40
ex VAT
In stock
Price Break
10+
CHF 28.84
19+
CHF 27.22
29+
CHF 26.89
39+
CHF 26.57
49+
CHF 26.24
74+
CHF 25.92
99+
CHF 24.30
199+
CHF 23.98
249+
CHF 23.65
499+
CHF 23.33
999+
CHF 22.68
Couldn't load pickup availability
Description
Description
|
INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 65.1mm
- Width:
- 28.6mm
- Type:
- Parallel Outer
Technical
Technical
| d | 17mm |
|---|---|
| D | 65.1mm |
| B1 | 28.6mm |
| C | 25.4mm |
| D2 | 35mm |
| d3 max | 28mm |
| P | 12.7mm |
| S1 | 22.1mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 900 N |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Designation of bearing | 331062 |
| Weight | 0.18 kg |
