SKU: RCSMB20/65-FA106-INA

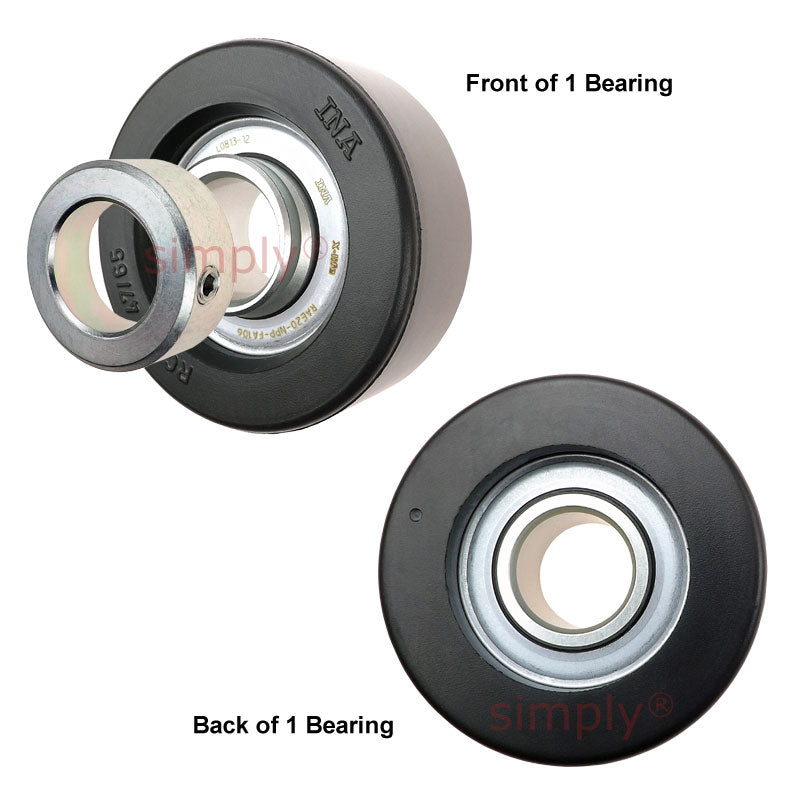

INA RCSMB20/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x65.1x31mm
INA RCSMB20/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x65.1x31mm
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 27.63
5+
CHF 26.07
10+
CHF 25.76
15+
CHF 25.45
20+
CHF 25.14
30+
CHF 24.83
40+
CHF 23.28
50+
CHF 22.97
60+
CHF 22.66
75+
CHF 22.35
100+
CHF 21.73
Description
Description
|
INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 65.1mm
- Width:
- 31mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 65.1mm |
| B1 | 31mm |
| C | 25.4mm |
| D2 | 40mm |
| d3 max | 33mm |
| P | 12.7mm |
| S1 | 23.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1200 N |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of bearing | 331063 |
| Weight | 0.22 kg |
