SKU: RCSMF15-XL-INA

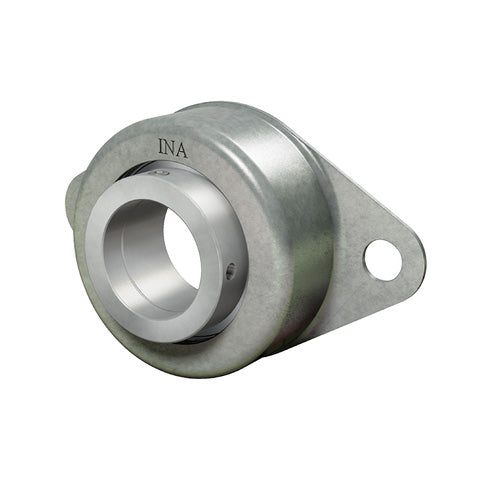

INA RCSMF15XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 15mm Bore
INA RCSMF15XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 15mm Bore
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
4+
CHF 31.77
9+
CHF 29.99
19+
CHF 29.63
29+
CHF 29.27
39+
CHF 28.92
49+
CHF 28.56
59+
CHF 26.78
69+
CHF 26.42
79+
CHF 26.06
89+
CHF 25.70
99+
CHF 24.99
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Style:
- RCSMF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 15mm |
|---|---|
| H | 114mm |
| U | 34.8mm |
| A | 27mm |
| A2 | 12.7mm |
| B1 | 28.6mm |
| d3 max | 28.4mm |
| J | 92mm |
| L | 70mm |
| N | 10.5mm |
| S | 1.5mm |
| V | 68mm |
| Mass | 0.27 kg |
| Load carrying capacity of housing Cor G | 900 N |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | FLAN65-RCSMF |
| Designation of bearing | RAE15-XL-NPP-FA106 |
| Designation of rubber interliner | GRG.RCSM40/65 |
