SKU: RCSMF30-XL-INA

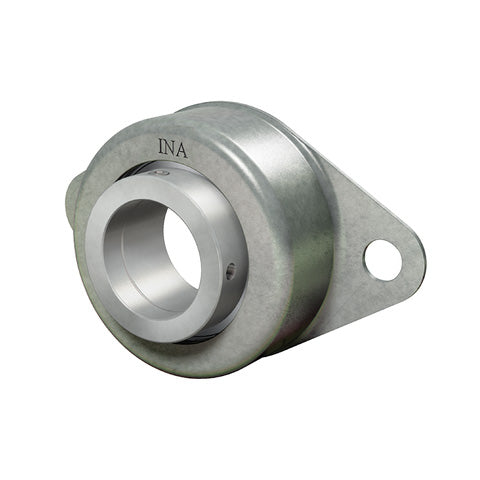

INA RCSMF30XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 30mm Bore
INA RCSMF30XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 30mm Bore
Regular price
CHF 55.00
ex VAT
Regular price
Sale price
CHF 55.00
ex VAT
In stock
Price Break
4+
CHF 43.50
9+
CHF 41.06
19+
CHF 40.57
29+
CHF 40.08
39+
CHF 39.59
49+
CHF 39.10
59+
CHF 36.66
69+
CHF 36.17
79+
CHF 35.68
89+
CHF 35.19
99+
CHF 34.22
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Style:
- RCSMF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 30mm |
|---|---|
| H | 114mm |
| U | 35mm |
| A | 27mm |
| A2 | 15mm |
| B1 | 26.5mm |
| d3 max | 42.5mm |
| J | 92mm |
| L | 70mm |
| N | 10.5mm |
| S | 1.5mm |
| V | 68mm |
| Mass | 0.32 kg |
| Load carrying capacity of housing Cor G | 1400 N |
| Basic dynamic load rating Cr | 14100 N |
| Basic static load rating Cor | 8300 N |
| Designation of housing | FLAN65-RCSMF |
| Designation of bearing | RALE30-XL-NPP-FA106 |
| Designation of rubber interliner | GRG.RCSM55/65 |
