SKU: RHE45-XL-INA

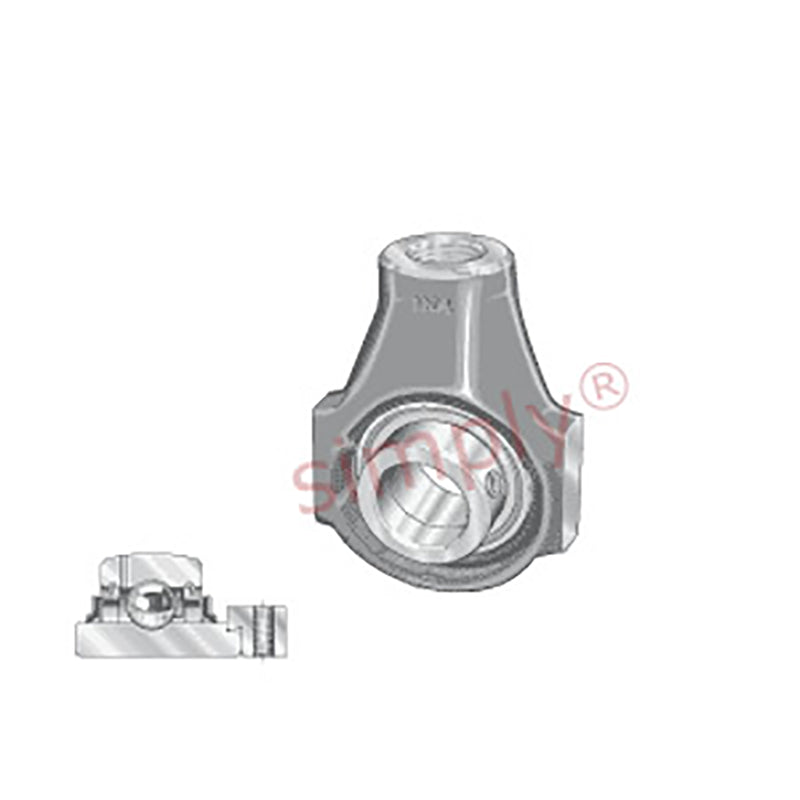

INA RHE45XL Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore
INA RHE45XL Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore
Regular price
CHF 99.00
ex VAT
Regular price
Sale price
CHF 99.00
ex VAT
In stock
Price Break
4+
CHF 78.51
9+
CHF 74.10
19+
CHF 73.21
29+
CHF 72.33
39+
CHF 71.45
49+
CHF 70.57
59+
CHF 66.16
69+
CHF 65.28
79+
CHF 64.39
89+
CHF 63.51
99+
CHF 61.75
Description
Description
|
INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. These cast iron take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Style:
- RHE
Technical
Technical
| d | 45mm |
|---|---|
| L | 145mm |
| M | 110mm |
| A2 | 40mm |
| B1 | 56.5mm |
| d3 max | 63mm |
| K | M24 |
| K1 | 24mm |
| L1 | 90mm |
| Q | M6 |
| S1 | 35.1mm |
| T | 40mm |
| W | 45mm |
| Mass | 2.01 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 20400 N |
| Designation of housing | HE09 |
| Designation of bearing | GE45-XL-KRR-B |
