SKU: RM16HF-MB

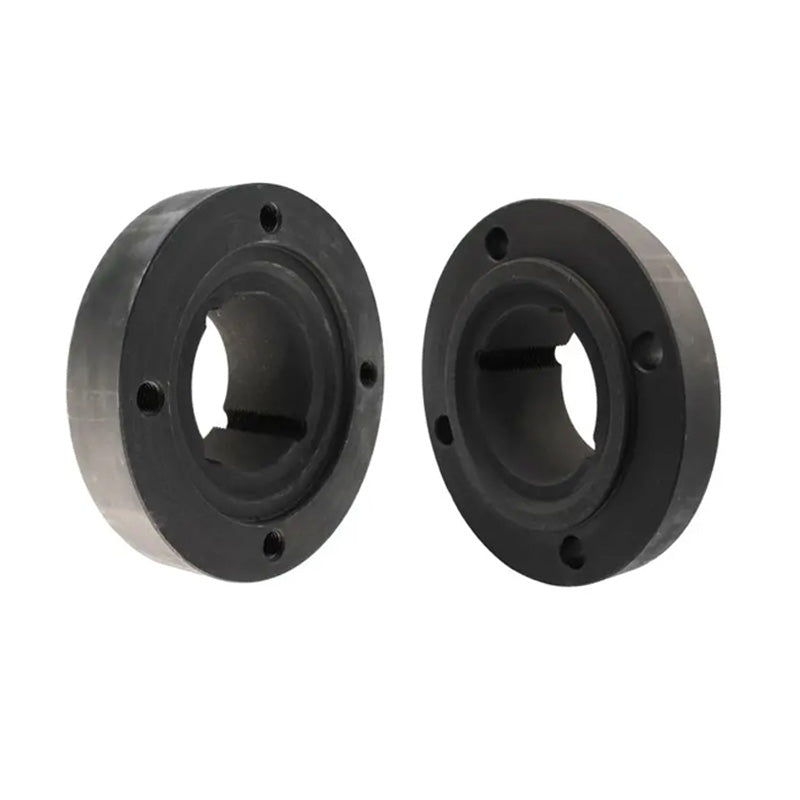

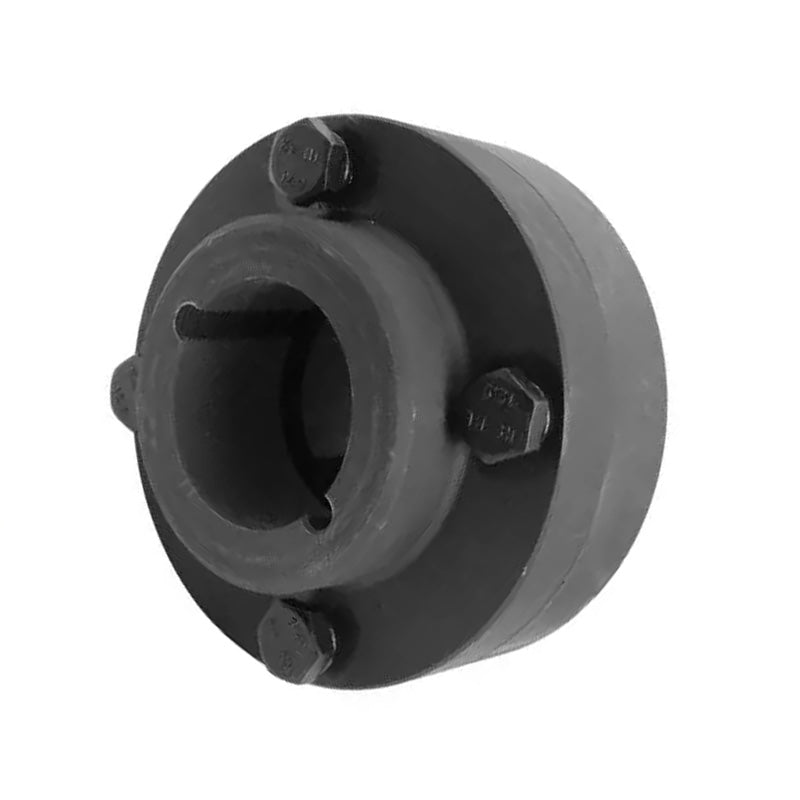

Major Brand RM16HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 42mm / 1-5/6 inch
Major Brand RM16HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 42mm / 1-5/6 inch
Regular price
CHF 86.98
ex VAT
Regular price
Sale price
CHF 86.98
ex VAT
Equivalent to: RM16HF-1610
In stock
Price Break
10+
CHF 77.41
19+
CHF 73.06
29+
CHF 72.19
39+
CHF 71.32
49+
CHF 70.45
74+
CHF 69.58
99+
CHF 65.24
199+
CHF 64.37
249+
CHF 63.50
499+
CHF 62.63
999+
CHF 60.89
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.
Equivalent: RM16HF-1610
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 42mm or 1-5/6 inch
Technical
Technical
| Bush | 1610<a href="advanced_search_result.php?keywords=taper+lock+bush+1610"> [Click Here]</a> |
|---|---|
| Max Bore Size | 42mm |
| Inch | 1-5/6 inch |
| A | 127mm |
| C | 43mm |
| D | 80mm |
| E | 25mm |
| F Nominal | 89mm |
| G Nominal | 105mm |
| H ♣ | 7mm |
| J ♠ | 38mm |
| L | 57mm |
| Mass ♥ | 4kg |
