SKU: RM25HF-MB
Major Brand RM25HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 60mm / 2-1/2 inch
Major Brand RM25HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 60mm / 2-1/2 inch
Regular price
CHF 173.94
ex VAT
Regular price
Sale price
CHF 173.94
ex VAT
Equivalent to: RM25HF-2517
In stock
Price Break
10+
CHF 154.81
19+
CHF 146.11
29+
CHF 144.37
39+
CHF 142.63
49+
CHF 140.89
74+
CHF 139.15
99+
CHF 130.46
199+
CHF 128.72
249+
CHF 126.98
499+
CHF 125.24
999+
CHF 121.76
Couldn't load pickup availability
Description
Description

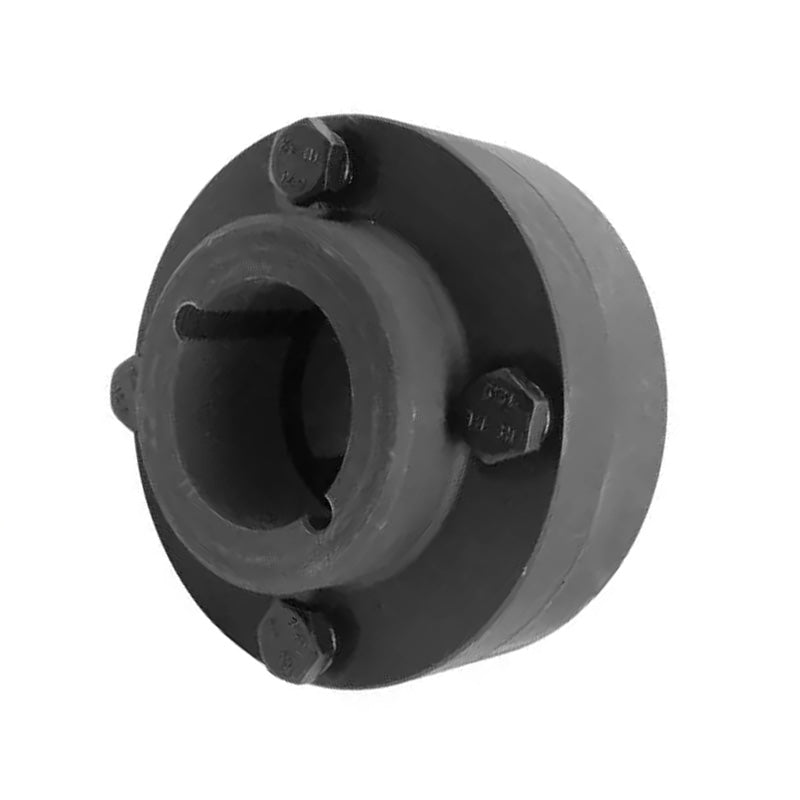

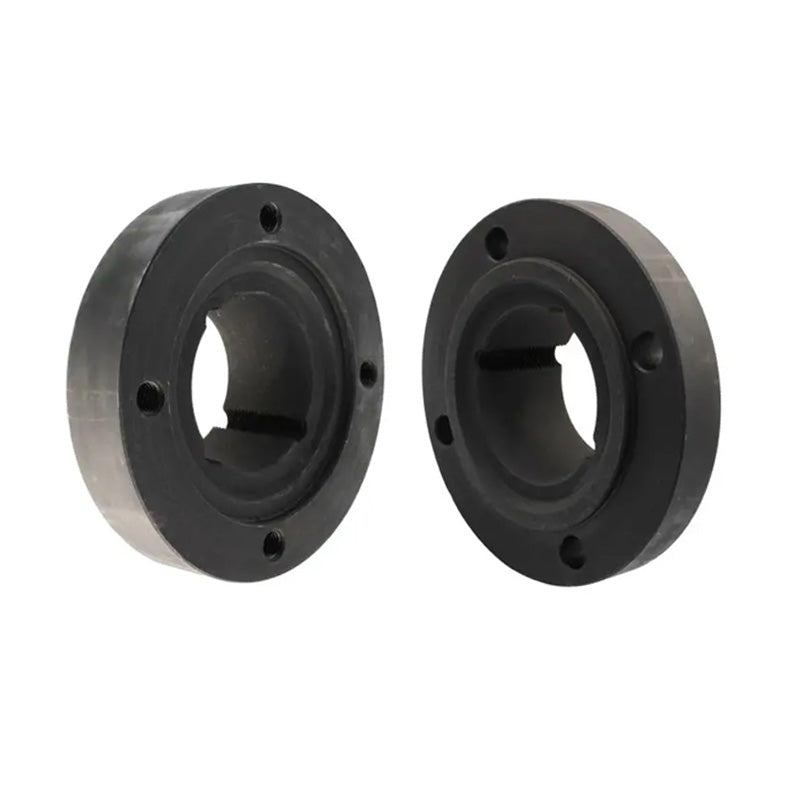

Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.
Equivalent: RM25HF-2517
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 60mm or 2-1/2 inch
Technical
Technical
| Bush | 2517<a href="advanced_search_result.php?keywords=taper+lock+bush+2517"> [Click Here]</a> |
|---|---|
| Max Bore Size | 60mm |
| Inch | 2-1/2 inch |
| A | 178mm |
| C | 51mm |
| D | 123mm |
| E | 45mm |
| F Nominal | 127mm |
| G Nominal | 149mm |
| H ♣ | 7mm |
| J ♠ | 48mm |
| L | 97mm |
| Mass ♥ | 11kg |
