SKU: RM30HF-MB

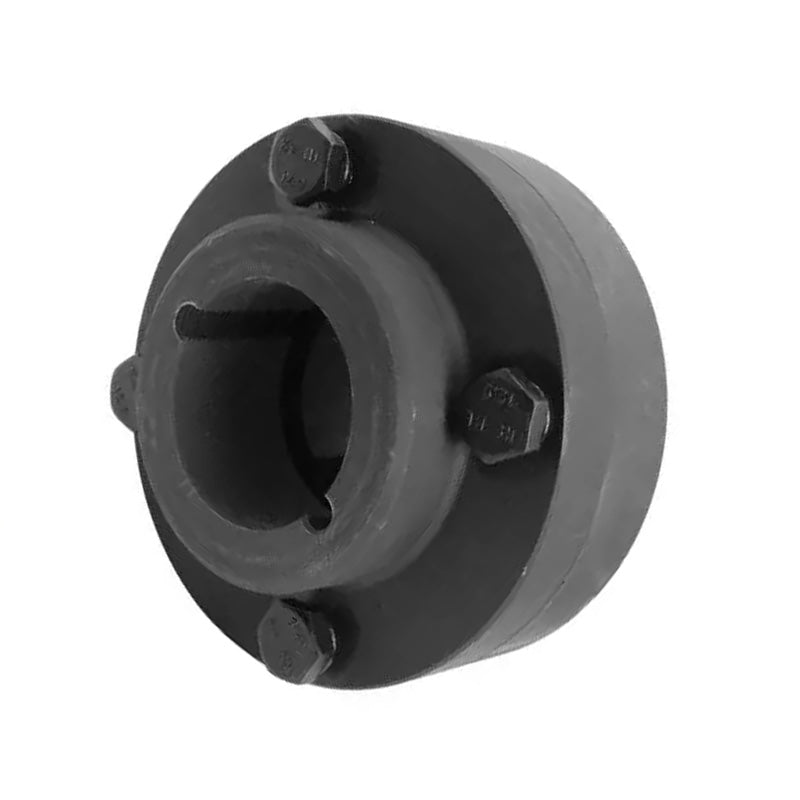

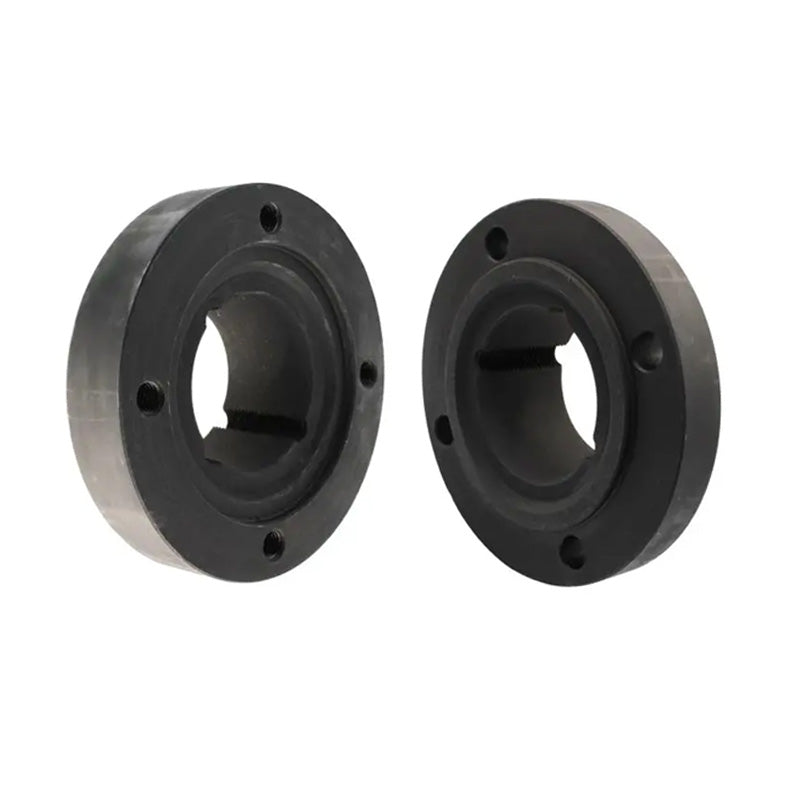

Major Brand RM30HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 75mm / 3 inch
Major Brand RM30HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 75mm / 3 inch
Regular price
CHF 210.28
ex VAT
Regular price
Sale price
CHF 210.28
ex VAT
Equivalent to: RM30HF-3020
In stock
Price Break
10+
CHF 187.15
19+
CHF 176.64
29+
CHF 174.53
39+
CHF 172.43
49+
CHF 170.33
74+
CHF 168.22
99+
CHF 157.71
199+
CHF 155.61
249+
CHF 153.50
499+
CHF 151.40
999+
CHF 147.20
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.
Equivalent: RM30HF-3020
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 75mm or 3 inch
Technical
Technical
| Bush | 3020<a href="advanced_search_result.php?keywords=taper+lock+bush+3020"> [Click Here]</a> |
|---|---|
| Max Bore Size | 75mm |
| Inch | 3 inch |
| A | 216mm |
| C | 65mm |
| D | 146mm |
| E | 51mm |
| F Nominal | 152mm |
| G Nominal | 181mm |
| H ♣ | 7mm |
| J ♠ | 54mm |
| L | 109mm |
| Mass ♥ | 20kg |
