SKU: RM35HF-MB

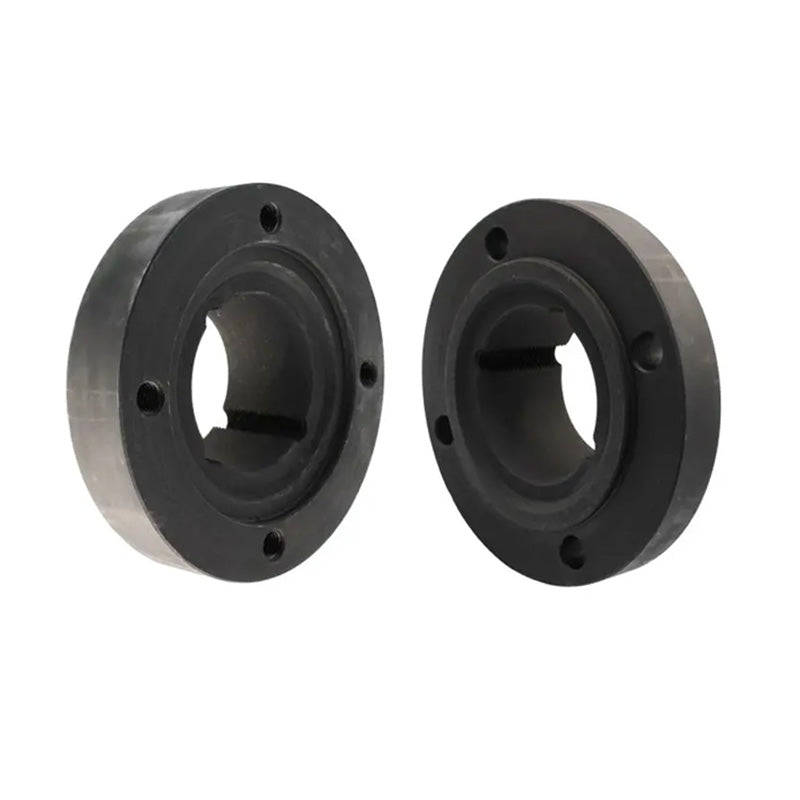

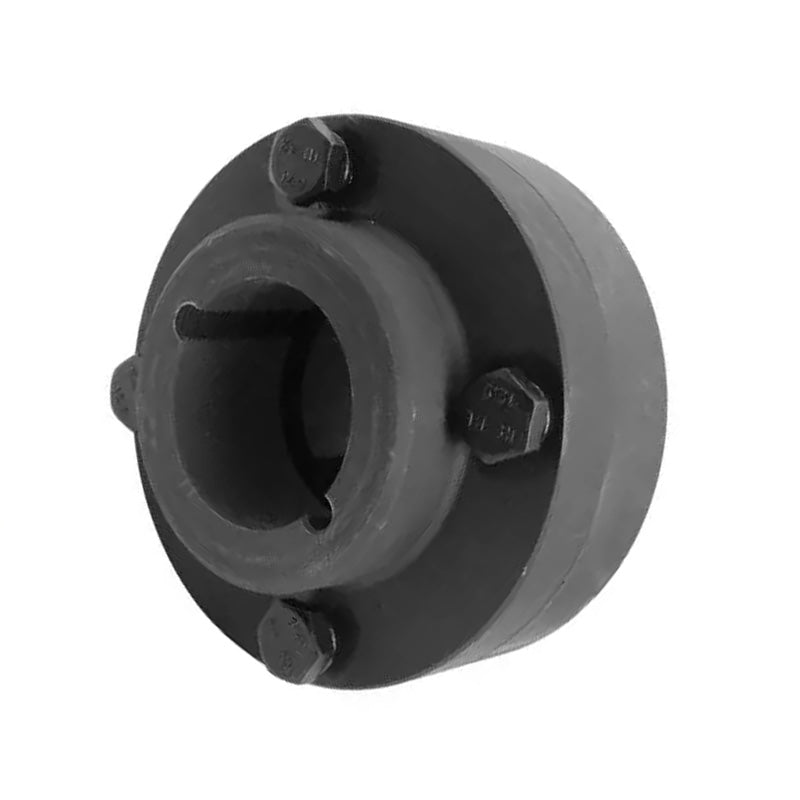

Major Brand RM35HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 100mm / 4 inch
Major Brand RM35HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 100mm / 4 inch
Regular price
CHF 435.32
ex VAT
Regular price
Sale price
CHF 435.32
ex VAT
Equivalent to: RM35HF-3525
In stock
Price Break
10+
CHF 387.43
19+
CHF 365.67
29+
CHF 361.32
39+
CHF 356.96
49+
CHF 352.61
74+
CHF 348.26
99+
CHF 326.49
199+
CHF 322.14
249+
CHF 317.78
499+
CHF 313.43
999+
CHF 304.72
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.
Equivalent: RM35HF-3525
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 100mm or 4 inch
Technical
Technical
| Bush | 3525<a href="advanced_search_result.php?keywords=taper+lock+bush+3525"> [Click Here]</a> |
|---|---|
| Max Bore Size | 100mm |
| Inch | 4 inch |
| A | 248mm |
| C | 75mm |
| D | 178mm |
| E | 65mm |
| F Nominal | 178mm |
| G Nominal | 213mm |
| H ♣ | 7mm |
| J ♠ | 67mm |
| L | 137mm |
| Mass ♥ | 34kg |
