SKU: RM40FF-DUN
Dunlop RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Dunlop RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Regular price
CHF 440.35
ex VAT
Regular price
Sale price
CHF 440.35
ex VAT
In stock
Price Break
10+
CHF 391.91
19+
CHF 369.89
29+
CHF 365.49
39+
CHF 361.09
49+
CHF 356.68
74+
CHF 352.28
99+
CHF 330.26
199+
CHF 325.86
249+
CHF 321.46
499+
CHF 317.05
999+
CHF 308.25
Couldn't load pickup availability
Description
Description

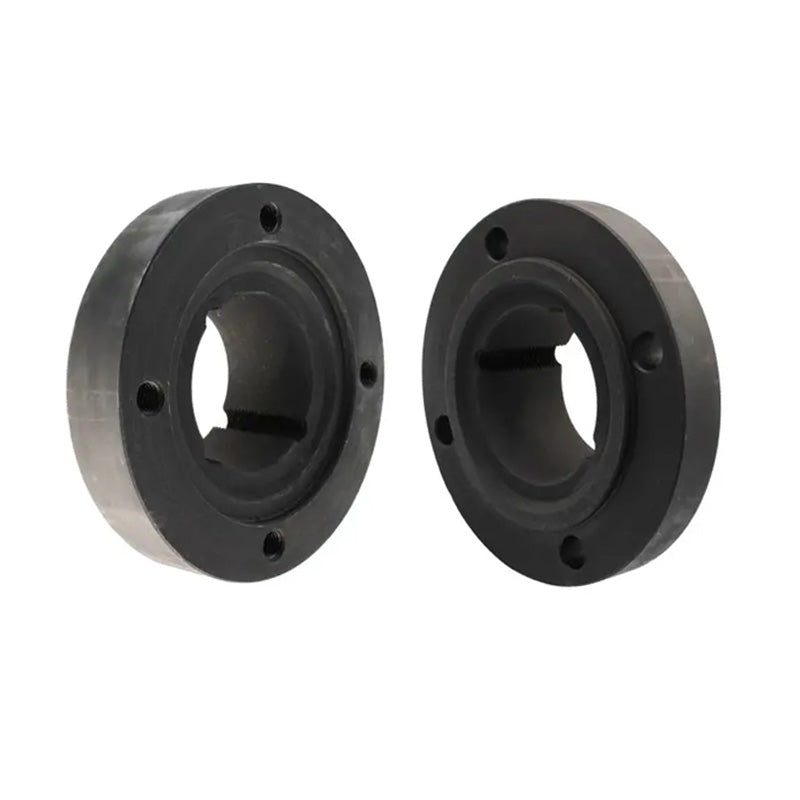

Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).
- Brand / Quality:
- Dunlop - Good Quality
- Max Bore:
- 110mm or 4-1/2 inch
Technical
Technical
| Bush | 4030<a href="advanced_search_result.php?keywords=taper+lock+bush+4030"> [Click Here]</a> |
|---|---|
| Max Bore Size | 110mm |
| Inch | 4-1/2 inch |
| A | 298mm |
| C | 76mm |
| D | 210mm |
| E | 76mm |
| F Nominal | 216mm |
| G Nominal | 257mm |
| H ♣ | 7mm |
| J ♠ | 79mm |
| L | 159mm |
| Mass ♥ | 59kg |
