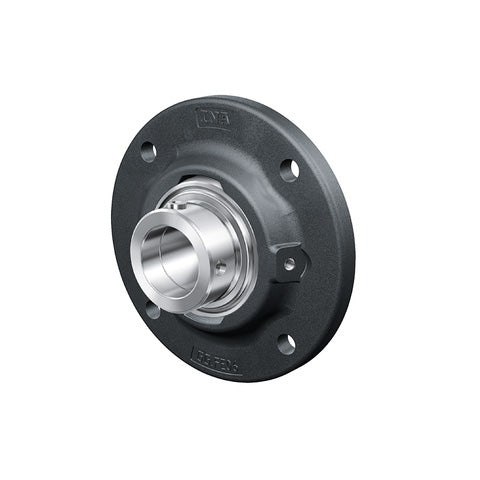

INA RMEY55XL Four Bolt Cast Iron Round Housing with Grub Screw Insert 55mm Bore
INA RMEY55XL Four Bolt Cast Iron Round Housing with Grub Screw Insert 55mm Bore
Regular price
CHF 117.00
ex VAT
Regular price
Sale price
CHF 117.00
ex VAT
In stock
Price Break
4+
CHF 92.89
9+
CHF 87.67
19+
CHF 86.63
29+
CHF 85.58
39+
CHF 84.54
49+
CHF 83.50
59+
CHF 78.28
69+
CHF 77.23
79+
CHF 76.19
89+
CHF 75.15
99+
CHF 73.06
Description
Description
|
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, centring spigot, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55mm
- Style:
- RMEY
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| d | 55mm |
|---|---|
| H | 185mm |
| B | 55.6mm |
| A | 27.5mm |
| A1 | 15mm |
| J | 150 |
| N | 18mm |
| Q | M6 |
| S | 3mm |
| U | 33.4mm |
| Z | 125mm (Tolerance: h8) |
| Mass | 3.05 kg |
| Basic dynamic load rating Cr | 46000 N |
| Basic static load rating Cor | 29000 N |
| Designation of housing | ME11 |
| Designation of bearing | GYE55-XL-KRR-B |
