SKU: RNA0-25X35X26ZW-NTN

NTN RNA0-25X35X26ZW Seperable Double Row Machined Needle Roller Bearing no Shaft Sleeve 25x35x26mm - Allow 2-3 Days

NTN RNA0-25X35X26ZW Seperable Double Row Machined Needle Roller Bearing no Shaft Sleeve 25x35x26mm - Allow 2-3 Days
Regular price CHF 20.00 ex VAT
Regular price Sale price CHF 20.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 17.54
4+ CHF 16.83
9+ CHF 16.48
19+ CHF 15.95
49+ CHF 15.59
99+ CHF 14.71
499+ CHF 12.40
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

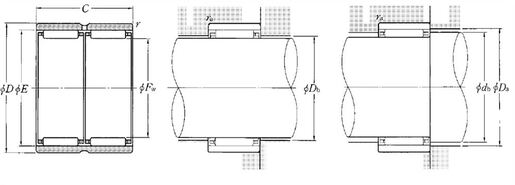

Fw - Under rollers diameter 25mm
D - Outside diameter 35mm
C - Width of bearing, drawn cup or outer ring 26mm
E - Upper roller diameter 29mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 18.4 kN
C0r - Static load rating 33.5 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 28.4mm
Da max - Outer ring maximum shoulder diameter 33mm
Db max - Outer ring maximum smooth shaft shoulder diameter 25.6mm
ras max - Maximum shaft & housing fillet radius 0.3mm
