SKU: RNA2203LL/3AS-NTN

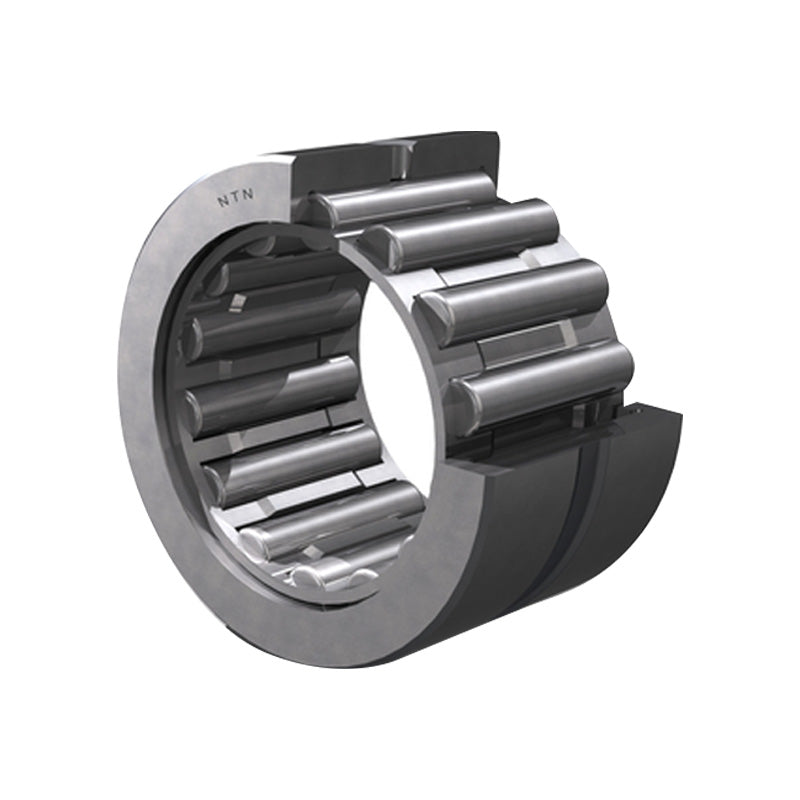

NTN RNA2203LL/3AS Yoke Type Track Roller without Inner Race 22x40x15.8mm - Allow 2-3 Days
NTN RNA2203LL/3AS Yoke Type Track Roller without Inner Race 22x40x15.8mm - Allow 2-3 Days
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
3+
CHF 21.93
4+
CHF 21.04
9+
CHF 20.60
19+
CHF 19.94
49+
CHF 19.49
99+
CHF 18.38
499+
CHF 15.51
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
NTN RNA Type Track Rollers: These track rollers are high-performance, non-separable needle roller bearings designed for applications requiring high load capacity and smooth motion. Built with precision-engineered components, these rollers offer excellent rigidity, low friction, and long service life. Ideal for cam mechanisms, conveyors, and linear motion systems, NTN RNA Track Rollers deliver reliable performance even in demanding industrial environments.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 40mm
- Width:
- 15.8mm
Technical
Technical

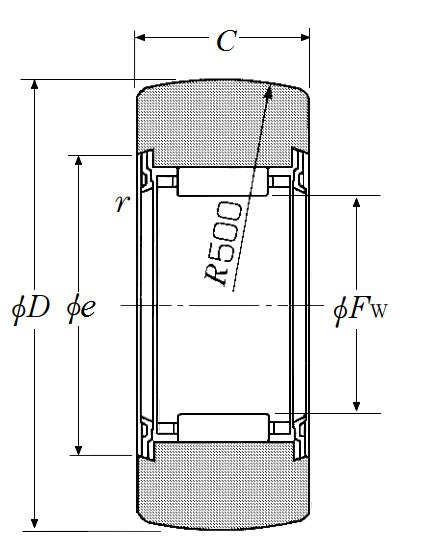

| Fw - Under roller diameter | 22mm |
|---|---|
| D - Outside diameter | 40mm |
| C - Outer ring width | 15.8mm |
| e - Inlet diameter | 28mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | With |
| Precision class | P0 |
| Cr - Dynamic load rating | 10.4 kN |
| C0r - Static load rating | 15.6 kN |
| Track load capacity | 3.85 kN |
| N - Grease lubrication limit speed | 7000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
