SKU: RNA2207.2RS-EU

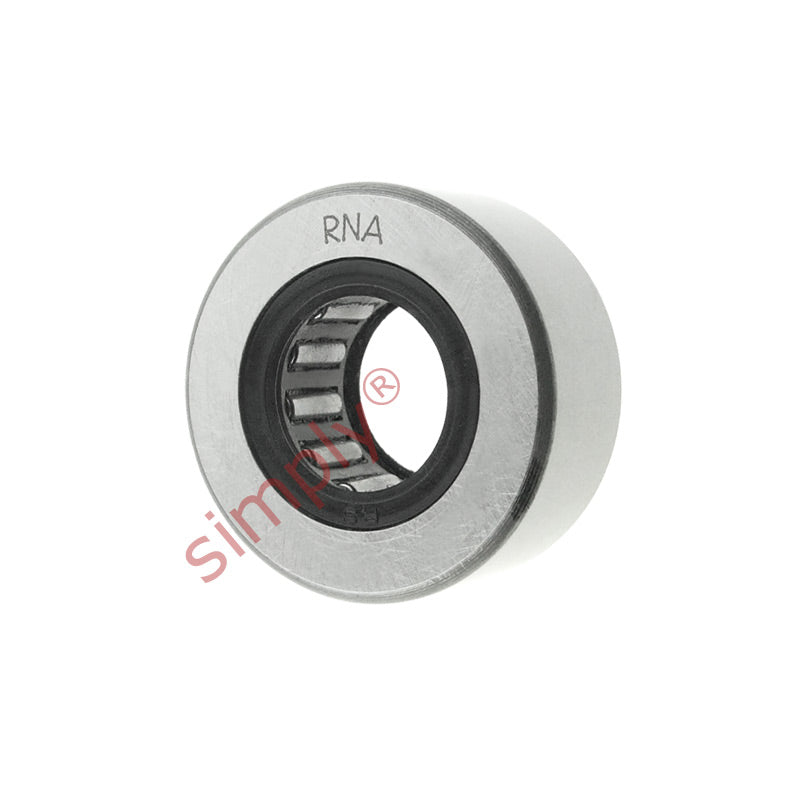

RNA22072RS Budget Support Roller with 2 Rubber Seals 42x72x22.7mm
RNA22072RS Budget Support Roller with 2 Rubber Seals 42x72x22.7mm
Regular price
CHF 32.00
ex VAT
Regular price
Sale price
CHF 32.00
ex VAT
Equivalent to: RNA2207LL
In stock
Price Break
10+
CHF 24.76
19+
CHF 23.37
29+
CHF 23.09
39+
CHF 22.81
49+
CHF 22.54
74+
CHF 22.26
99+
CHF 20.87
199+
CHF 20.59
249+
CHF 20.31
499+
CHF 20.03
999+
CHF 19.48
Description
Description
Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
Equivalent: RNA2207LL
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 72mm
- Width:
- 22.7mm
- Seals / Shields:
- Rubber Seals
Technical
Technical
| D | 72mm |
|---|---|
| C | 22.7mm |
| Fw | 42mm |
| D1 | 50mm |
| r min | 1.1mm |
| Speed rating | 1100 rpm |
| Dynamic load | 22000 N |
| Static load | 34000 N |
| Fatigue load limit Pu | 4300 N |
| Min radial force dynamic load | 39000 N |
| Max radial force dynamic load | 56000 N |
| Weight | 430 g |
