SKU: RNA4901-MB

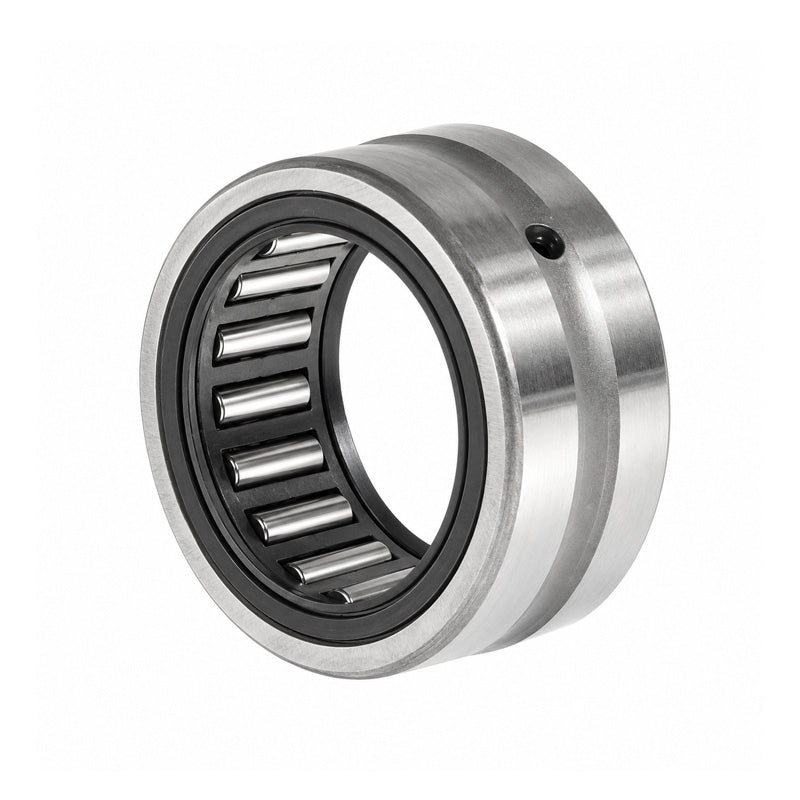

Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
10+
CHF 12.05
19+
CHF 11.37
29+
CHF 11.24
39+
CHF 11.10
49+
CHF 10.97
74+
CHF 10.83
99+
CHF 10.16
199+
CHF 10.02
249+
CHF 9.88
499+
CHF 9.75
999+
CHF 9.48
Share this product
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 13mm |
| Dynamic load | 9900 N |
| Static load | 12200 N |
| Fatigue load limit Pu | 1460 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 17 g |
