SKU: RNA4907R-NTN

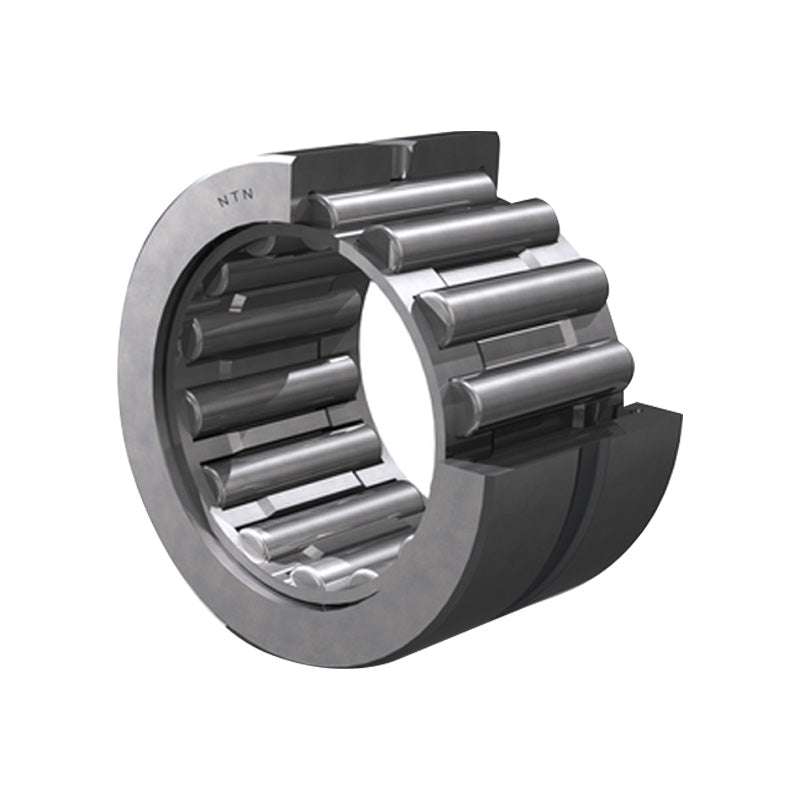

NTN RNA4907R Machined Needle Roller Bearing no Shaft Sleeve 42x55x20mm - Allow 2-3 Days

NTN RNA4907R Machined Needle Roller Bearing no Shaft Sleeve 42x55x20mm - Allow 2-3 Days
Regular price CHF 20.00 ex VAT
Regular price Sale price CHF 20.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 17.54
4+ CHF 16.83
9+ CHF 16.48
19+ CHF 15.95
49+ CHF 15.59
99+ CHF 14.71
499+ CHF 12.40
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 42mm
D - Outside diameter 55mm
C - Width of bearing, drawn cup or outer ring 20mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 32 kN
C0r - Static load rating 50 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 9500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 51mm
ras max - Maximum shaft & housing fillet radius 0.6mm
