SKU: RNA4908R-NTN

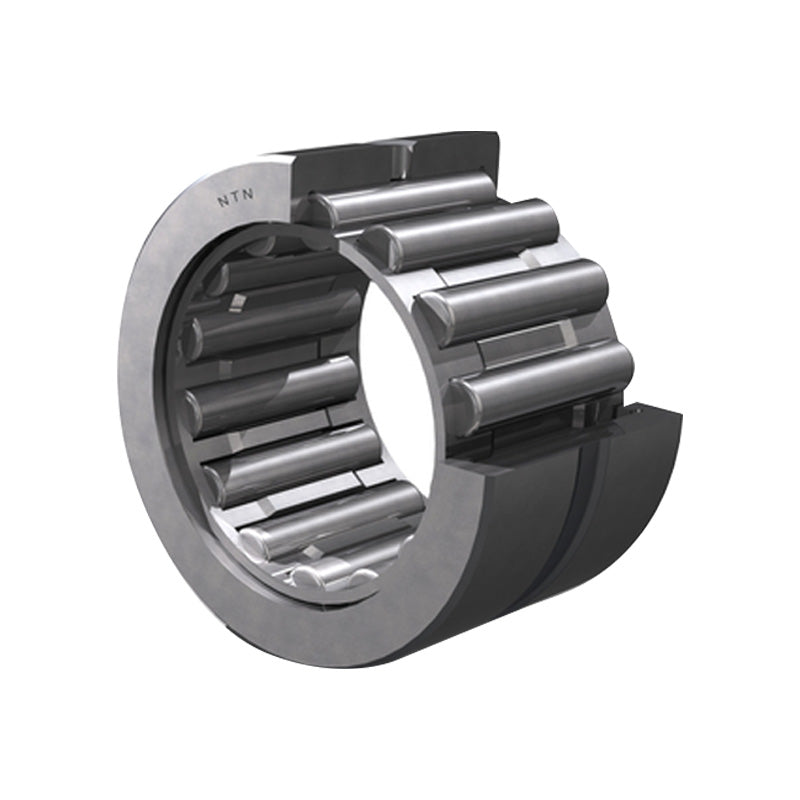

NTN RNA4908R Machined Needle Roller Bearing no Shaft Sleeve 48x62x22mm - Allow 2-3 Days

NTN RNA4908R Machined Needle Roller Bearing no Shaft Sleeve 48x62x22mm - Allow 2-3 Days
Regular price CHF 23.00 ex VAT
Regular price Sale price CHF 23.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 19.74
4+ CHF 18.94
9+ CHF 18.54
19+ CHF 17.95
49+ CHF 17.55
99+ CHF 16.55
499+ CHF 13.96
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 48mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 22mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 43.5 kN
C0r - Static load rating 66.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
