SKU: RNA4914-MB

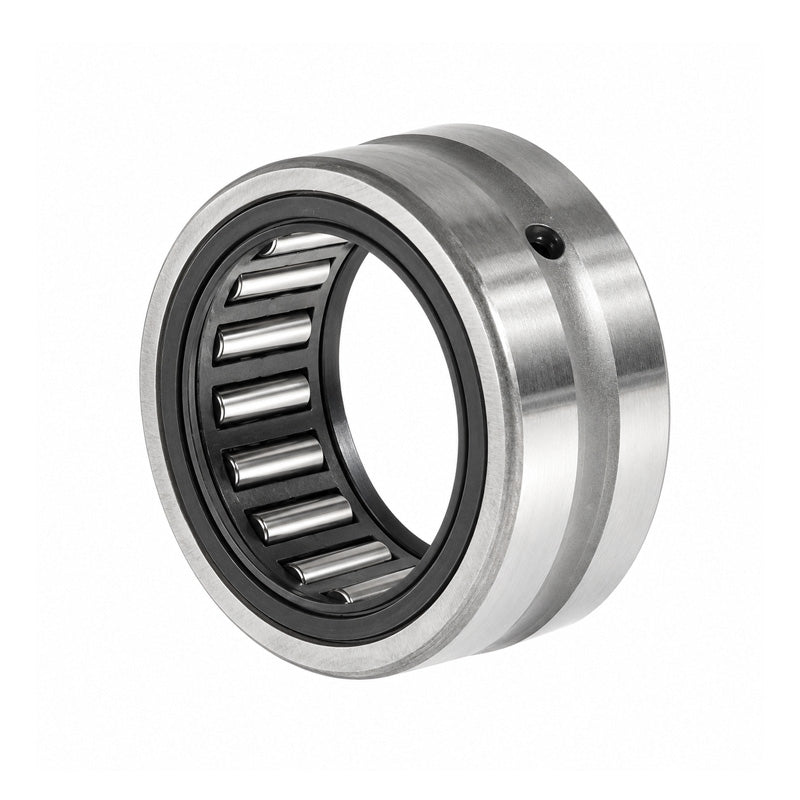

Major Brand RNA4914 Needle Roller Bearing With Flanges without Shaft Sleeve 80x100x30mm
Major Brand RNA4914 Needle Roller Bearing With Flanges without Shaft Sleeve 80x100x30mm
Regular price
CHF 60.42
ex VAT
Regular price
Sale price
CHF 60.42
ex VAT
In stock
Price Break
10+
CHF 53.77
19+
CHF 50.75
29+
CHF 50.15
39+
CHF 49.54
49+
CHF 48.94
74+
CHF 48.34
99+
CHF 45.32
199+
CHF 44.71
249+
CHF 44.11
499+
CHF 43.50
999+
CHF 42.29
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Width:
- 30mm
Technical
Technical
| Fw | 80mm |
|---|---|
| D | 100mm |
| C | 30mm |
| Dynamic load | 84200 N |
| Static load | 163000 N |
| Fatigue load limit Pu | 21600 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| r1r2 | 1mm |
| Da max | 95mm |
| ra max | 1mm |
| Seal | CR80x100x10CRW1R |
| Weight | 460 g |
