SKU: RNA6903-MB

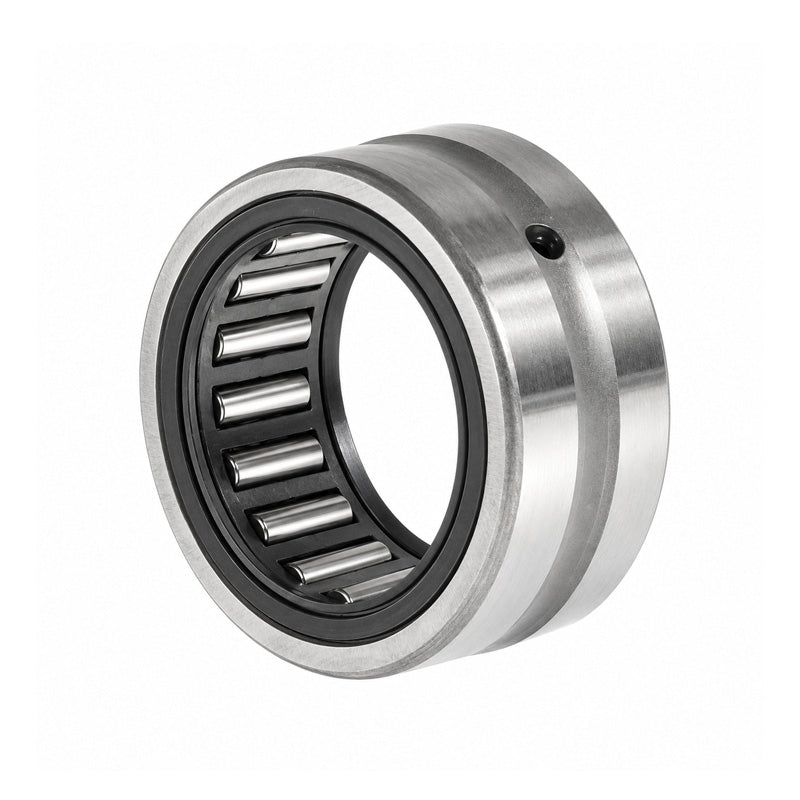

Major Brand RNA6903 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x23mm
Major Brand RNA6903 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x23mm
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
10+
CHF 22.50
19+
CHF 21.23
29+
CHF 20.98
39+
CHF 20.73
49+
CHF 20.47
74+
CHF 20.22
99+
CHF 18.96
199+
CHF 18.70
249+
CHF 18.45
499+
CHF 18.20
999+
CHF 17.69
Share this product
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 23mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 23mm |
| Dynamic load | 18700 N |
| Static load | 30500 N |
| Fatigue load limit Pu | 3900 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 42 g |
