SKU: RNA6908R-NTN

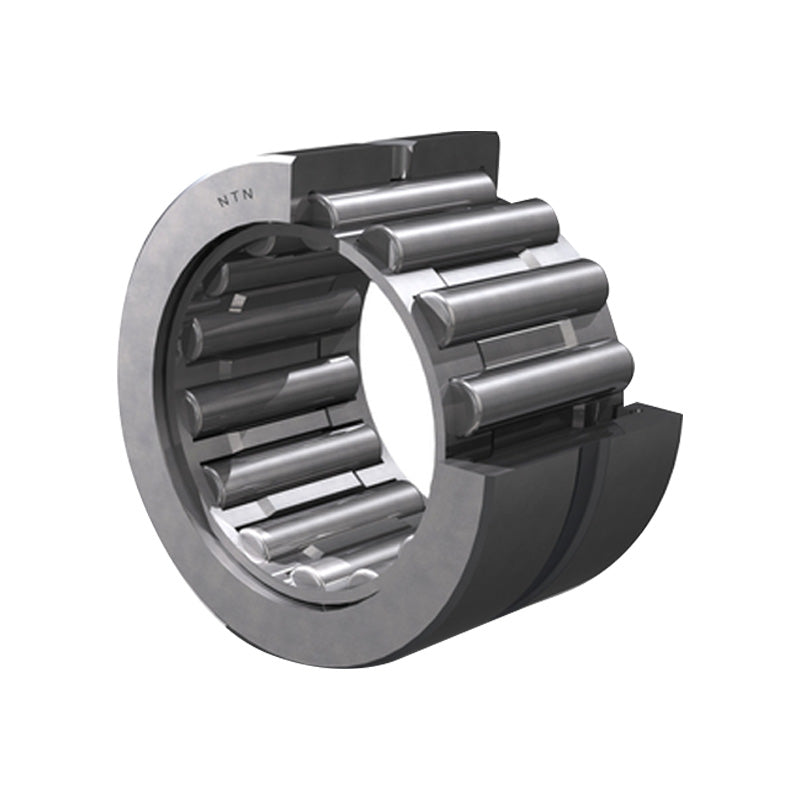

NTN RNA6908R Machined Needle Roller Bearing no Shaft Sleeve 48x62x40mm

NTN RNA6908R Machined Needle Roller Bearing no Shaft Sleeve 48x62x40mm
Regular price CHF 36.00 ex VAT
Regular price Sale price CHF 36.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 27.98
4+ CHF 26.41
9+ CHF 26.10
19+ CHF 25.78
49+ CHF 25.47
99+ CHF 25.15
499+ CHF 23.58
999+ CHF 23.27
1999+ CHF 22.95
2999+ CHF 22.64
4999+ CHF 22.01
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 48mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 40mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 67 kN
C0r - Static load rating 116 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
