SKU: RNAB202-NTN

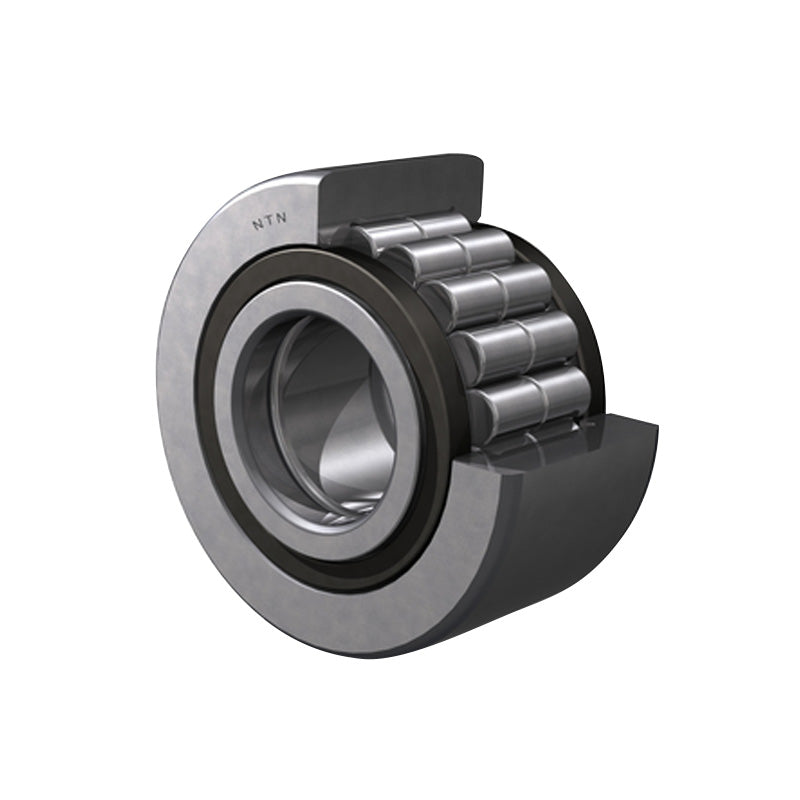

NTN RNAB202 Yoke Type Track Roller without Inner Race 20x35x11.8mm - Allow 2-3 Days
NTN RNAB202 Yoke Type Track Roller without Inner Race 20x35x11.8mm - Allow 2-3 Days
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
3+
CHF 19.74
4+
CHF 18.94
9+
CHF 18.54
19+
CHF 17.95
49+
CHF 17.55
99+
CHF 16.55
499+
CHF 13.96
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
NTN RNA Type Track Rollers: These track rollers are high-performance, non-separable needle roller bearings designed for applications requiring high load capacity and smooth motion. Built with precision-engineered components, these rollers offer excellent rigidity, low friction, and long service life. Ideal for cam mechanisms, conveyors, and linear motion systems, NTN RNA Track Rollers deliver reliable performance even in demanding industrial environments.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 11.8mm
Technical
Technical
| Fw - Under roller diameter | 20mm |
|---|---|
| D - Outside diameter | 35mm |
| C - Outer ring width | 11.8mm |
| e - Inlet diameter | 26mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | With |
| Precision class | P0 |
| Cr - Dynamic load rating | 13.3 kN |
| C0r - Static load rating | 15.7 kN |
| Track load capacity | 3.21 kN |
| N - Grease lubrication limit speed | 7500 tr/min |
| N - Oil lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
