• RNAO40x50x17 Budget Needle Roller Bearing no Flanges or Shaft Sleeve
1 1

SKU: RNAO40x50x17-EU

RNAO40x50x17 Budget Needle Roller Bearing no Flanges or Shaft Sleeve

RNAO40x50x17 Budget Needle Roller Bearing no Flanges or Shaft Sleeve
CHF 19.00 ex VAT
CHF 19.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 14.67
19+ CHF 13.85
29+ CHF 13.68
39+ CHF 13.52
49+ CHF 13.35
74+ CHF 13.19
99+ CHF 12.36
199+ CHF 12.20
249+ CHF 12.03
499+ CHF 11.87
999+ CHF 11.54
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

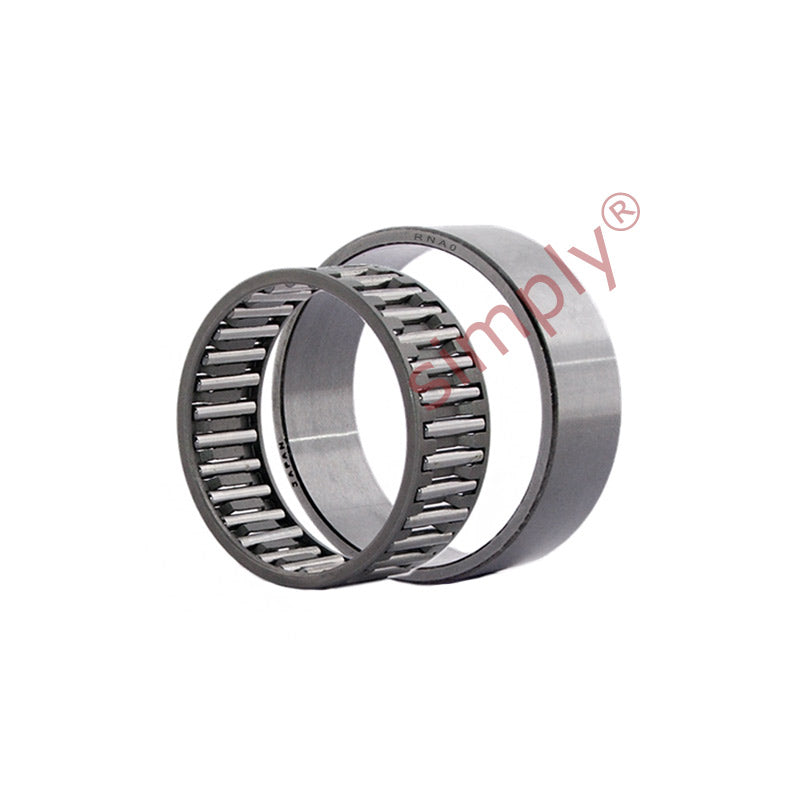

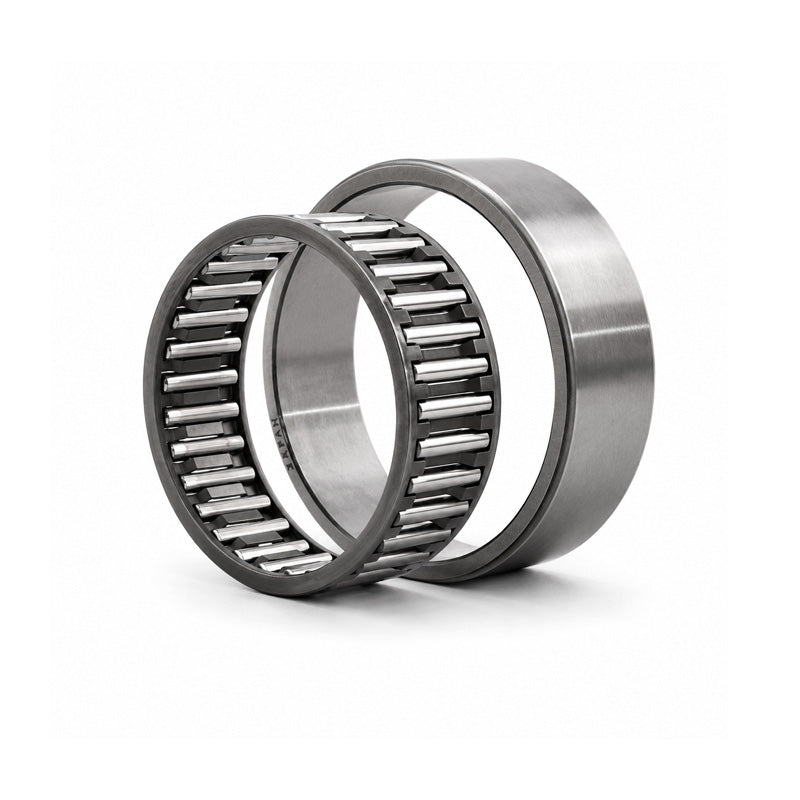

Budget Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component.
Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
50mm
Width:
17mm
Technical
Fw 40mm
D 50mm
C 17mm
Dynamic load C 20500 N
Static load Co 41500 N
Fatigue load limit Pu 5000 N
Speed in grease 7000 rpm
Speed in oil 10000 rpm
E 45mm
r1r2 min 0.3mm
da 44.4mm
Da 45.5mm
Db 40.6mm
ra max 0.3mm
Weight 74 g
