SKU: RNAO60x78x20-EU
RNAO60x78x20 Budget Needle Roller Bearing no Flanges or Shaft Sleeve
RNAO60x78x20 Budget Needle Roller Bearing no Flanges or Shaft Sleeve
Regular price
CHF 56.54
ex VAT
Regular price
Sale price
CHF 56.54
ex VAT
In stock
Price Break
10+
CHF 50.32
19+
CHF 47.49
29+
CHF 46.93
39+
CHF 46.36
49+
CHF 45.80
74+
CHF 45.23
99+
CHF 42.41
199+
CHF 41.84
249+
CHF 41.27
499+
CHF 40.71
999+
CHF 39.58
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 20mm
Technical
Technical

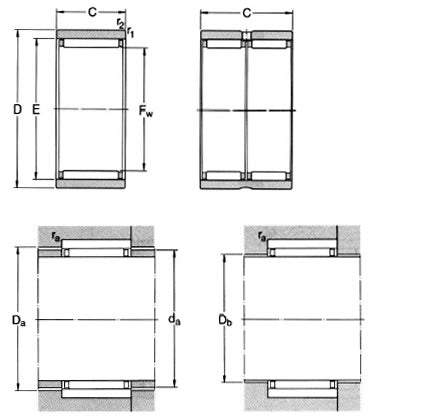

| Fw | 60mm |
|---|---|
| D | 78mm |
| C | 20mm |
| Dynamic load C | 41800 N |
| Static load Co | 86500 N |
| Fatigue load limit Pu | 10600 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| E | 68mm |
| r1r2 min | 1mm |
| da | 67.2mm |
| Da | 68.8mm |
| Db | 61mm |
| ra max | 1mm |
| Weight | 260 g |
