SKU: RNU203ECP-SKF

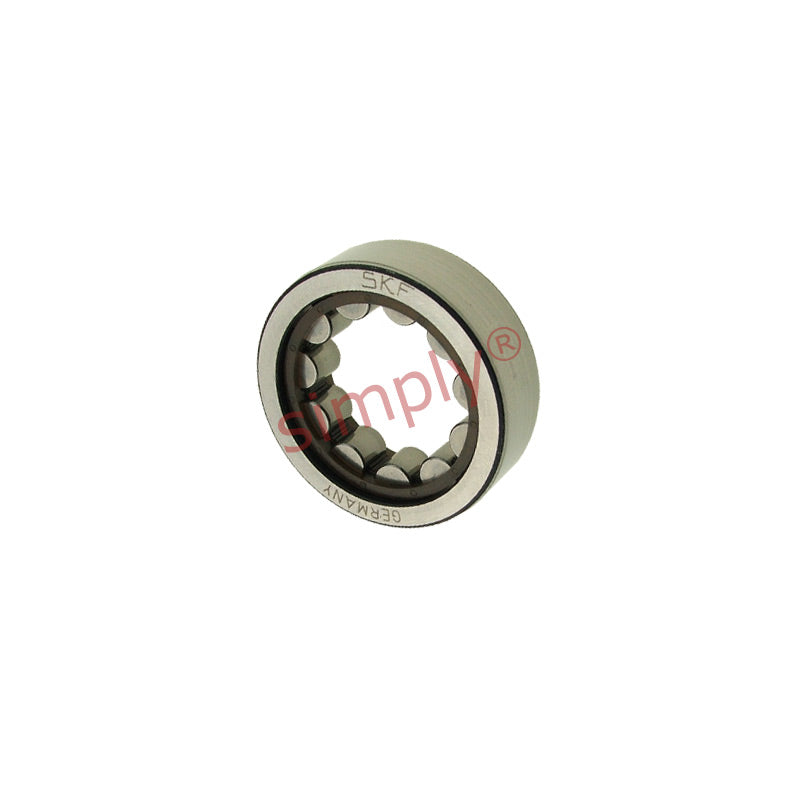

SKF RNU203ECP Single Row Cylindrical Roller Bearing 22.1x40x12mm
SKF RNU203ECP Single Row Cylindrical Roller Bearing 22.1x40x12mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.49
19+
CHF 18.40
29+
CHF 18.18
39+
CHF 17.96
49+
CHF 17.74
74+
CHF 17.52
99+
CHF 16.43
199+
CHF 16.21
249+
CHF 15.99
499+
CHF 15.77
999+
CHF 15.33
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.1mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
Technical
Technical
| d | 22.1mm |
|---|---|
| D | 40mm |
| C | 12mm |
| C1 | 2.5mm |
| Dynamic load | 17.2 kN |
| Static load | 14.3 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 19000rpm |
| Limiting speed | 22000rpm |
| r1,2min | 0.6mm |
| Weight | 0.053kg |
