SKU: RNU204ECP-SKF

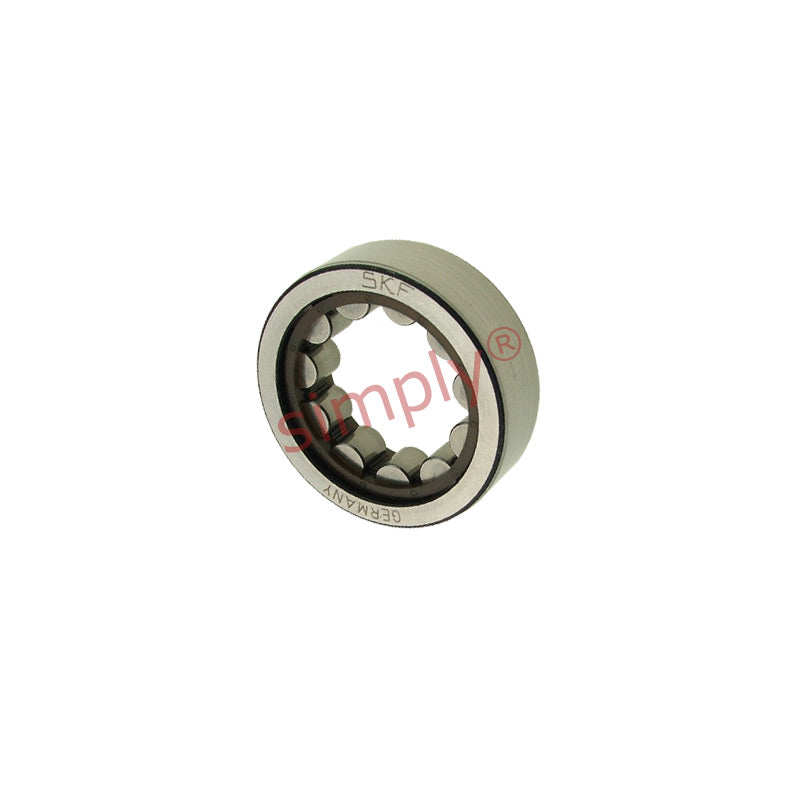

SKF RNU204ECP Single Row Cylindrical Roller Bearing 26.5x47x14mm
SKF RNU204ECP Single Row Cylindrical Roller Bearing 26.5x47x14mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
10+
CHF 24.50
19+
CHF 23.12
29+
CHF 22.85
39+
CHF 22.57
49+
CHF 22.30
74+
CHF 22.02
99+
CHF 20.65
199+
CHF 20.37
249+
CHF 20.09
499+
CHF 19.82
999+
CHF 19.27
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 26.5mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
Technical
Technical
| d | 26.5mm |
|---|---|
| D | 47mm |
| C | 14mm |
| C1 | 2.5mm |
| Dynamic load | 25.1 kN |
| Static load | 22 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 16000rpm |
| Limiting speed | 19000rpm |
| r1,2min | 1mm |
| Weight | 0.083kg |
