SKU: RNU304-MB

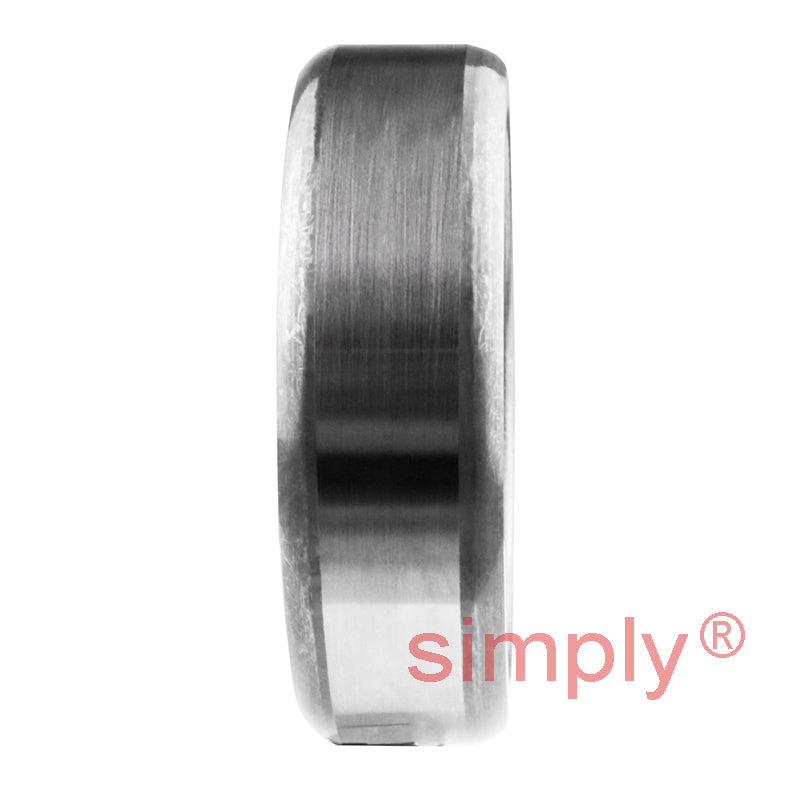

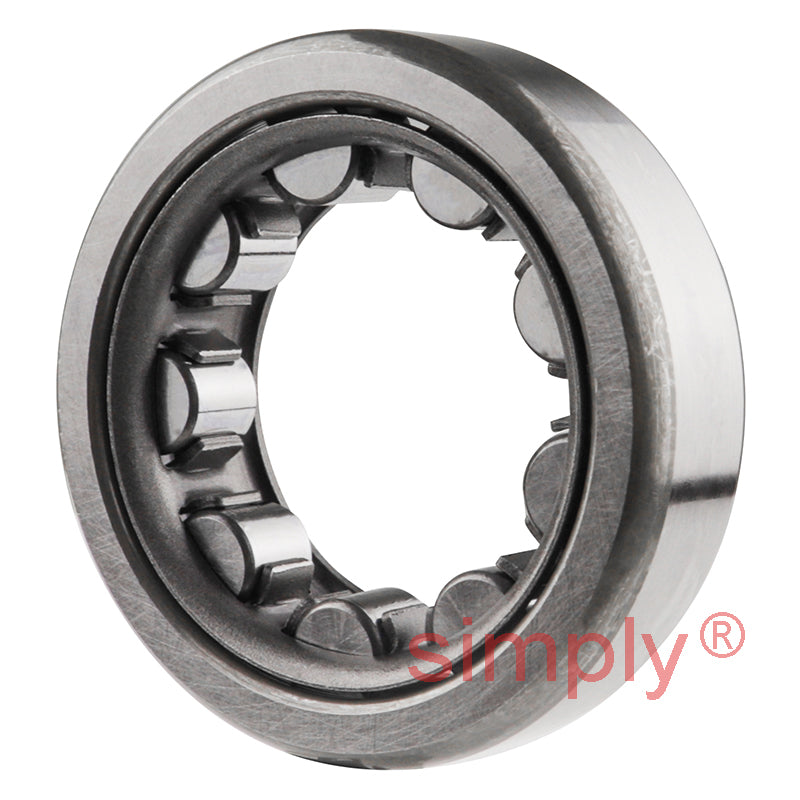

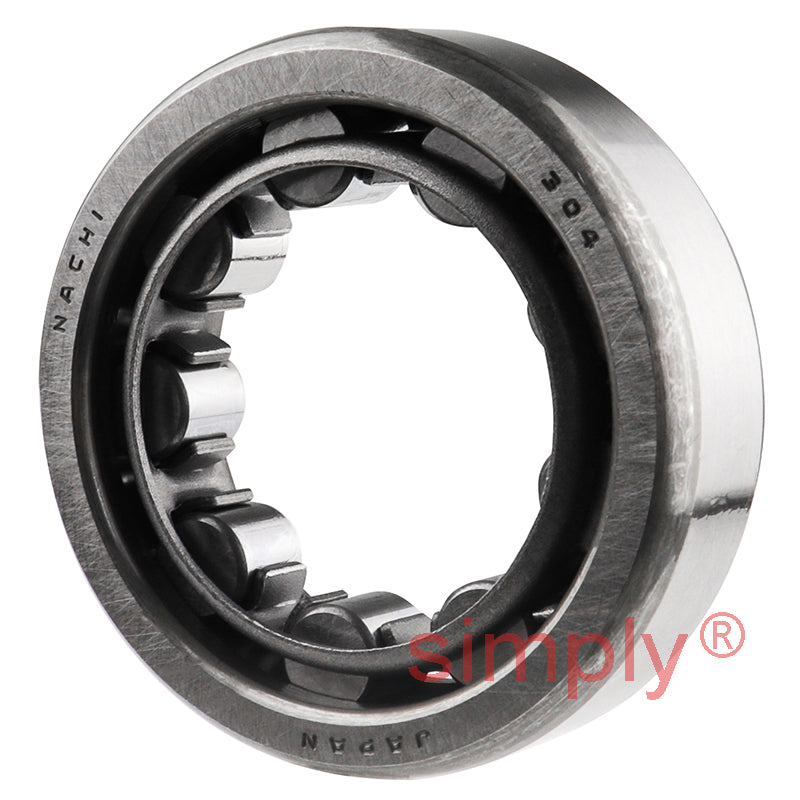

Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Regular price
CHF 59.00
ex VAT
Regular price
Sale price
CHF 59.00
ex VAT
In stock
Price Break
10+
CHF 46.33
19+
CHF 43.73
29+
CHF 43.21
39+
CHF 42.69
49+
CHF 42.17
74+
CHF 41.65
99+
CHF 39.05
199+
CHF 38.53
249+
CHF 38.00
499+
CHF 37.48
999+
CHF 36.44
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28.5mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| d | 28.5mm |
|---|---|
| D | 52mm |
| C | 15mm |
| C1 | 3.5mm |
| Dynamic load | 20.5 kN |
| Static load | 10.4 kN |
| Fatigue load limit Pu | 2080 kN |
| Reference speed | 15000rpm |
| Limiting speed | 18000rpm |
| r1,2min | 1.1mm |
| Weight | 0.11kg |
