SKU: RNU304-SKF

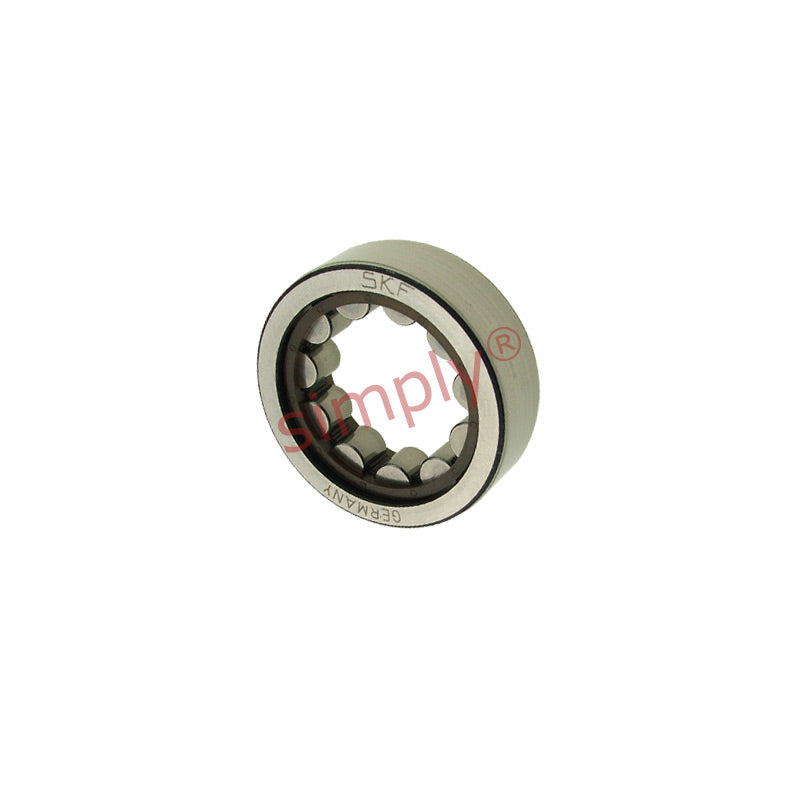

SKF RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
SKF RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Regular price
CHF 71.00
ex VAT
Regular price
Sale price
CHF 71.00
ex VAT
In stock
Price Break
10+
CHF 56.36
19+
CHF 53.20
29+
CHF 52.56
39+
CHF 51.93
49+
CHF 51.30
74+
CHF 50.66
99+
CHF 47.50
199+
CHF 46.86
249+
CHF 46.23
499+
CHF 45.60
999+
CHF 44.33
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 28.5mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| d | 28.5mm |
|---|---|
| D | 52mm |
| C | 15mm |
| C1 | 3.5mm |
| Dynamic load | 20.5 kN |
| Static load | 10.4 kN |
| Fatigue load limit Pu | 2080 kN |
| Reference speed | 15000rpm |
| Limiting speed | 18000rpm |
| r1,2min | 1.1mm |
| Weight | 0.11kg |
