SKU: RPB25-XL-INA

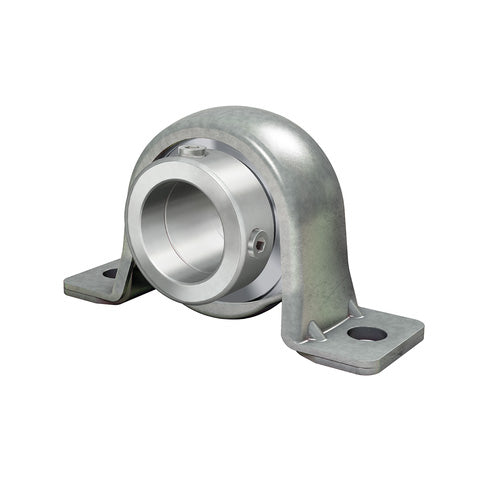

INA RPB25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 25mm Bore
INA RPB25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 25mm Bore
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
In stock
Price Break
4+
CHF 38.95
9+
CHF 36.76
19+
CHF 36.32
29+
CHF 35.88
39+
CHF 35.45
49+
CHF 35.01
59+
CHF 32.82
69+
CHF 32.38
79+
CHF 31.94
89+
CHF 31.51
99+
CHF 30.63
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which aborbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, eccentric collar, reduced running noise. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PPB
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 117.5mm |
| H2 | 66.1mm |
| A | 38mm |
| A1 | 26.5mm |
| B1 | 31mmd3 max |
| 37.5mm | H |
| 33.3mm | H1 |
| 4mm | J |
| 95mm | N |
| 11.5mm | S1 |
| 23.5mm | Mass |
| 0.38 kg | Load carrying capacity of housing Cor G |
| 1400 N | Basic dynamic load rating Cr |
| 14900 N | Basic static load rating Cor |
| 7800 N | Designation of housing |
| GEH62-BT? | Designation of bearing |
| RAE25-XL-NPP-B? | Designation of rubber interliner |
| GRG.RABR52/62-AH01? | N/A |
