SKU: RPNA15/28-EU

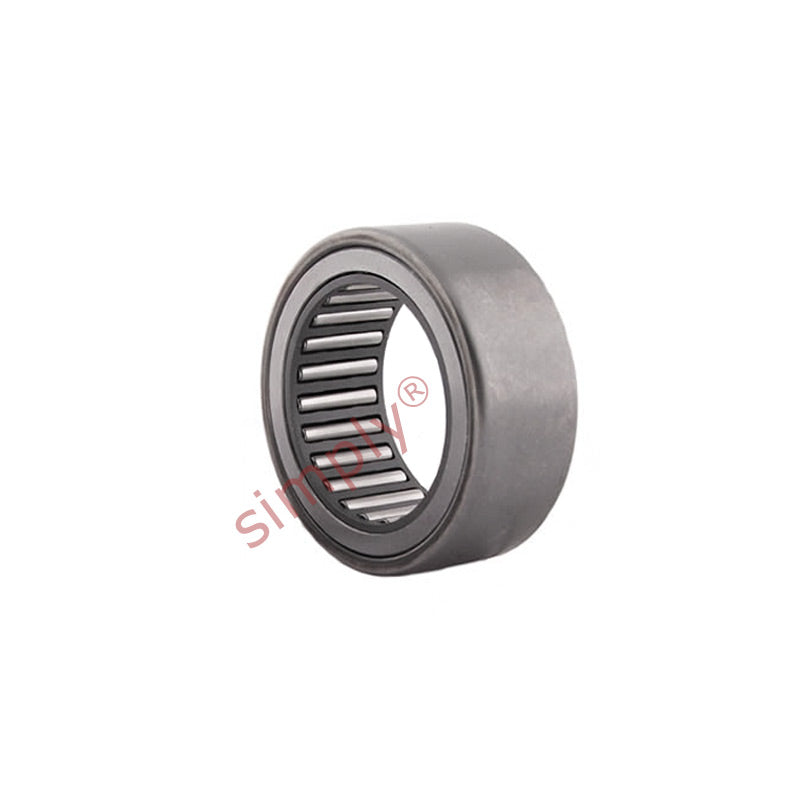

RPNA15/28 Budget Needle Roller Bearing Alignment Type no Inner Race 15x28x12
RPNA15/28 Budget Needle Roller Bearing Alignment Type no Inner Race 15x28x12
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.31
19+
CHF 6.90
29+
CHF 6.81
39+
CHF 6.73
49+
CHF 6.65
74+
CHF 6.57
99+
CHF 6.16
199+
CHF 6.08
249+
CHF 5.99
499+
CHF 5.91
999+
CHF 5.75
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load C | 7370 N |
| Static load Co | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| D1 | 24.5mm |
| r min | 1mm |
| Da min | 23.5mm |
| Da max | 24.5mm |
| ra max | 1mm |
| Weight | 32 g |
