SKU: RPNA18/32-MB

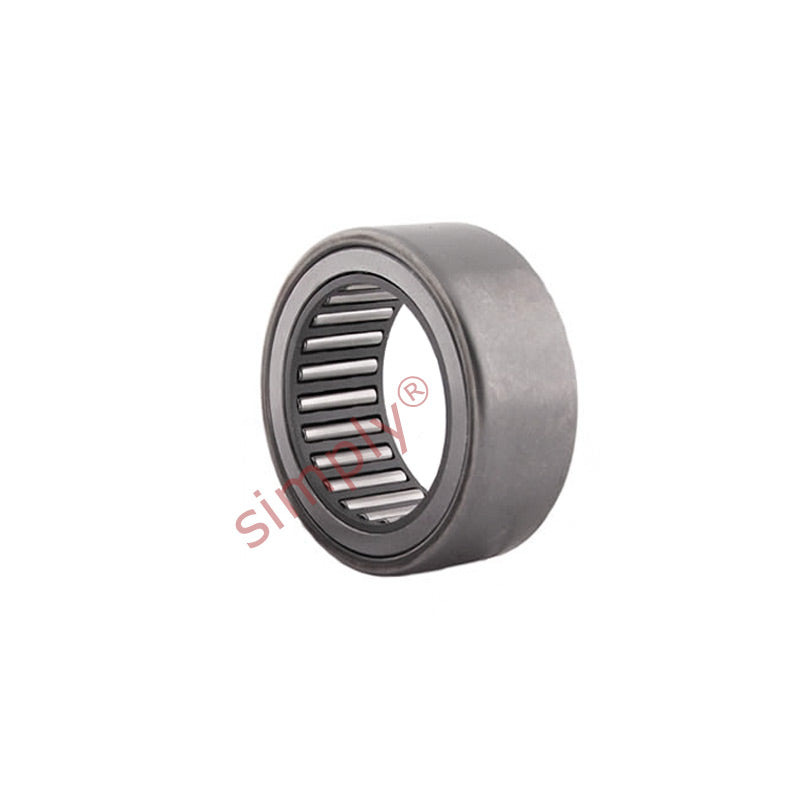

Major Brand RPNA18/32 Needle Roller Bearing Alignment Type Without Shaft Sleeve 18x32x16
Major Brand RPNA18/32 Needle Roller Bearing Alignment Type Without Shaft Sleeve 18x32x16
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
In stock
Price Break
10+
CHF 25.56
19+
CHF 24.13
29+
CHF 23.84
39+
CHF 23.55
49+
CHF 23.26
74+
CHF 22.98
99+
CHF 21.54
199+
CHF 21.25
249+
CHF 20.97
499+
CHF 20.68
999+
CHF 20.10
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load | 12800 N |
| Static load | 17600 N |
| Fatigue load limit Pu | 2120 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| D1 | 27mm |
| r min | 1mm |
| Da min | 26mm |
| Da max | 27mm |
| ra max | 1mm |
| Weight | 52 g |
