SKU: RPNA20/35-MB

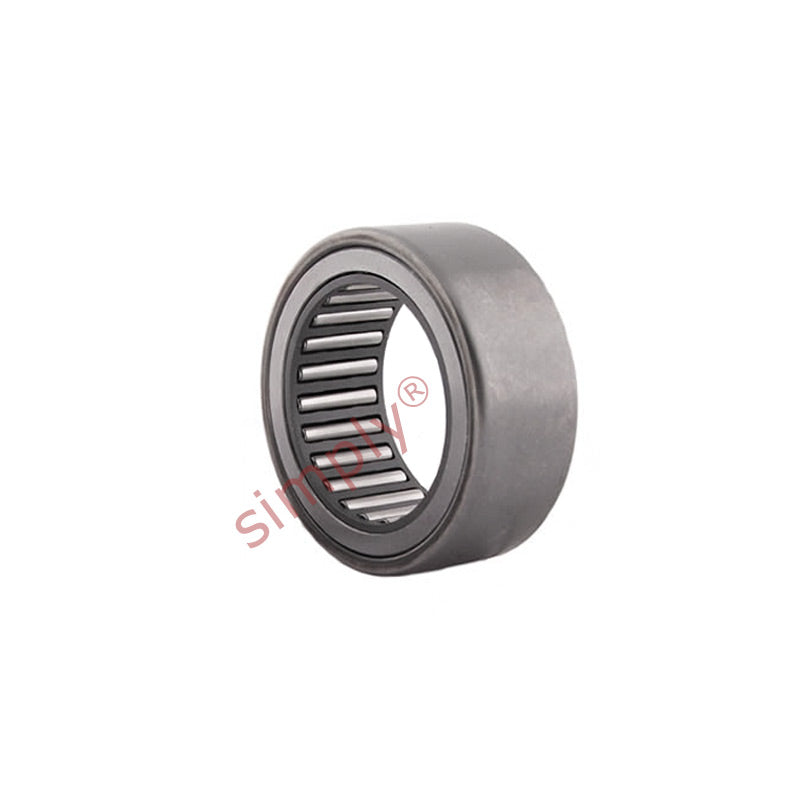

Major Brand RPNA20/35 Needle Roller Bearing Alignment Type Without Shaft Sleeve 20x35x16
Major Brand RPNA20/35 Needle Roller Bearing Alignment Type Without Shaft Sleeve 20x35x16
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
In stock
Price Break
10+
CHF 38.90
19+
CHF 36.72
29+
CHF 36.28
39+
CHF 35.84
49+
CHF 35.41
74+
CHF 34.97
99+
CHF 32.78
199+
CHF 32.35
249+
CHF 31.91
499+
CHF 31.47
999+
CHF 30.60
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 13200 N |
| Static load | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| D1 | 30.5mm |
| r min | 1mm |
| Da min | 29.5mm |
| Da max | 30.5mm |
| ra max | 1mm |
| Weight | 62 g |
