SKU: RPNA25/42-EU

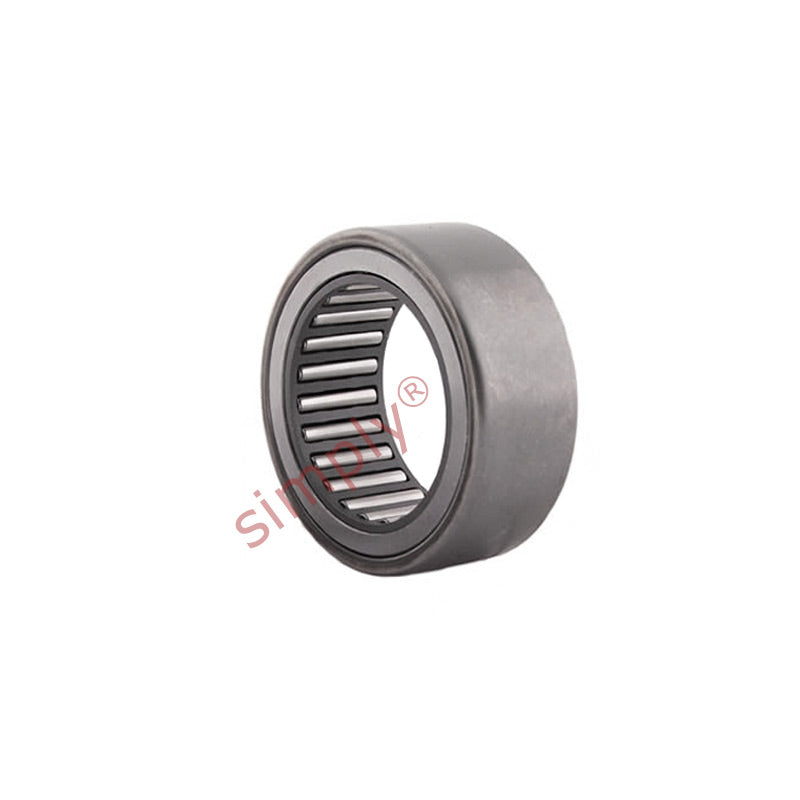

RPNA25/42 Budget Needle Roller Bearing Alignment Type no Inner Race 25x42x20
RPNA25/42 Budget Needle Roller Bearing Alignment Type no Inner Race 25x42x20
Regular price
CHF 19.15
ex VAT
Regular price
Sale price
CHF 19.15
ex VAT
In stock
Price Break
10+
CHF 17.04
19+
CHF 16.09
29+
CHF 15.89
39+
CHF 15.70
49+
CHF 15.51
74+
CHF 15.32
99+
CHF 14.36
199+
CHF 14.17
249+
CHF 13.98
499+
CHF 13.79
999+
CHF 13.41
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load C | 19000 N |
| Static load Co | 32500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| D1 | 36.5mm |
| r min | 1mm |
| Da min | 35mm |
| Da max | 37mm |
| ra max | 1mm |
| Weight | 110 g |
