SKU: RPNA30/47-MB

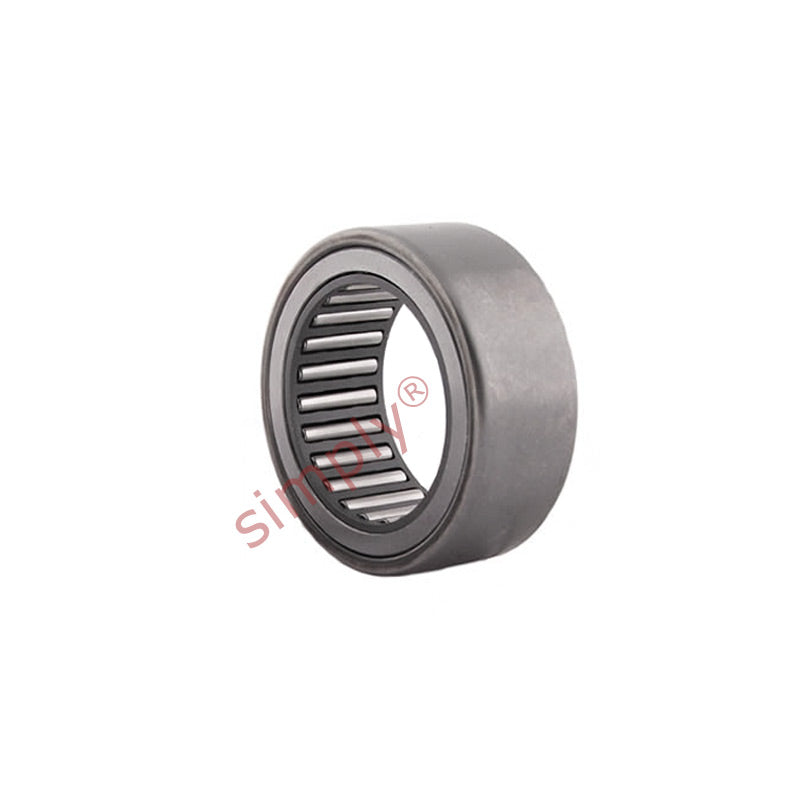

Major Brand RPNA30/47 Needle Roller Bearing Alignment Type Without Shaft Sleeve 30x47x20
Major Brand RPNA30/47 Needle Roller Bearing Alignment Type Without Shaft Sleeve 30x47x20
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
10+
CHF 49.16
19+
CHF 46.40
29+
CHF 45.85
39+
CHF 45.30
49+
CHF 44.74
74+
CHF 44.19
99+
CHF 41.43
199+
CHF 40.88
249+
CHF 40.32
499+
CHF 39.77
999+
CHF 38.67
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| B | 20mm |
| Dynamic load | 22900 N |
| Static load | 38000 N |
| Fatigue load limit Pu | 4800 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| D1 | 42mm |
| r min | 1mm |
| Da min | 41mm |
| Da max | 42mm |
| ra max | 1mm |
| Weight | 130 g |
