SKU: RSTO35-MB

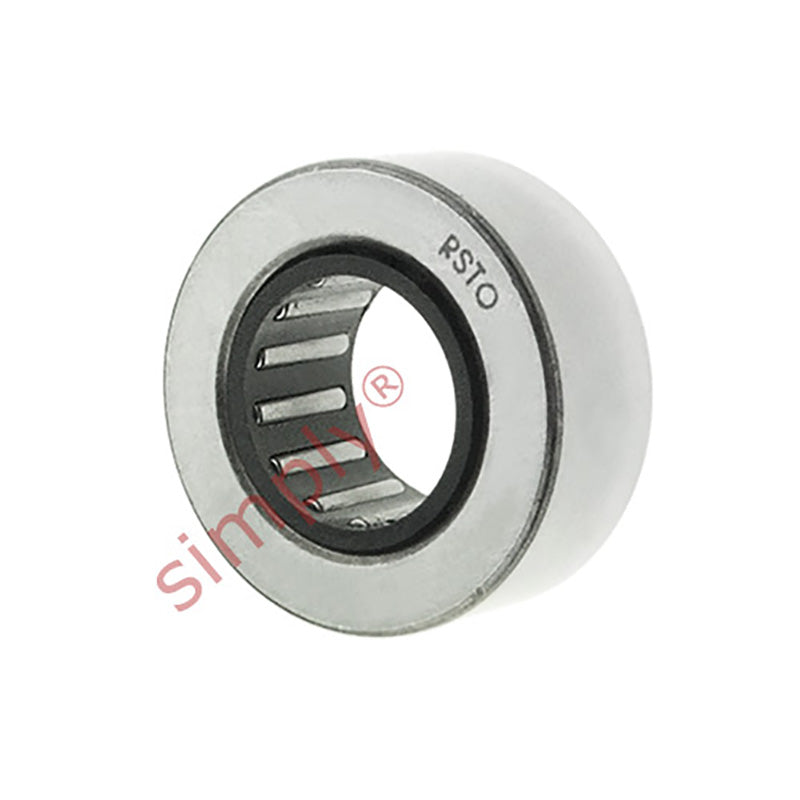

Major Brand RSTO35 Support Roller Without Axial Guidance Without Inner Sleeve 42x72x19.8mm
Major Brand RSTO35 Support Roller Without Axial Guidance Without Inner Sleeve 42x72x19.8mm
Regular price
CHF 73.00
ex VAT
Regular price
Sale price
CHF 73.00
ex VAT
In stock
Price Break
10+
CHF 57.43
19+
CHF 54.21
29+
CHF 53.56
39+
CHF 52.92
49+
CHF 52.27
74+
CHF 51.63
99+
CHF 48.40
199+
CHF 47.75
249+
CHF 47.11
499+
CHF 46.46
999+
CHF 45.17
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 72mm
- Width:
- 19.8mm
Technical
Technical
| Fw | 42mm |
|---|---|
| D | 72mm |
| C | 19.8mm |
| E | 50mm |
| r min | 0.6mm |
| Speed rating | 1100 rpm |
| Dynamic load | 24600 N |
| Static load | 39000 N |
| Fatigue load limit Pu | 4800 N |
| Min radial force dynamic load | 36000 N |
| Max radial force dynamic load | 51000 N |
| Weight | 380 g |
